M391B1G73EB0-YK0 Technical Specifications

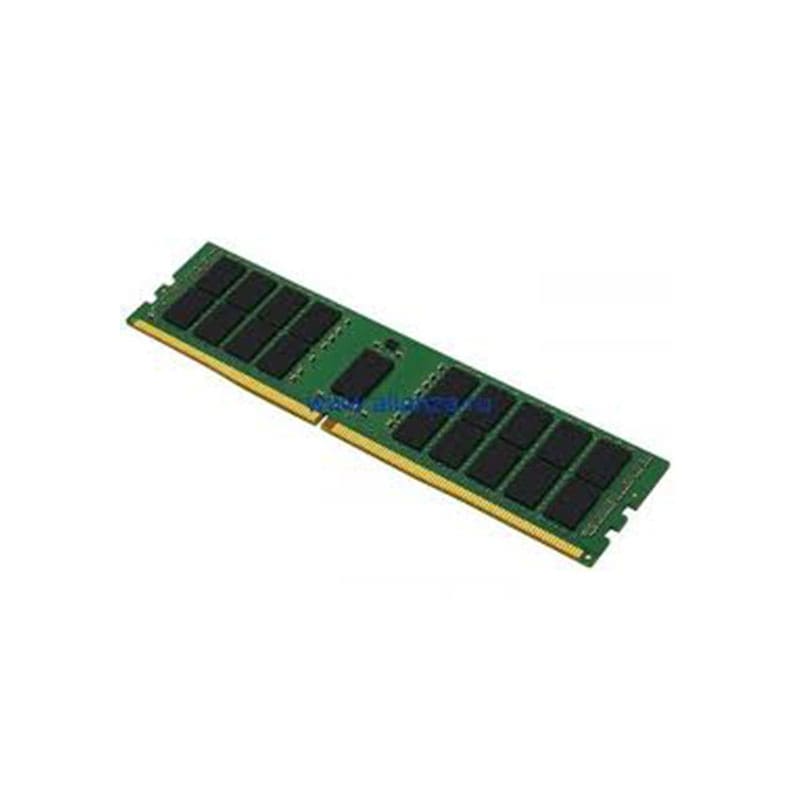

Samsung 8GB PC3-12800 DDR3-1600MHz ECC Unbuffered CL11 240-Pin DIMM 1.35V Low Voltage Dual Rank Memory Module
Technical Information
Supported Device: Server
Memory Capacity: 8 GB
Memory Technology: DDR3 SDRAM
Product Voltage: 1.35V
RAM Speed: 1600 MHz
RAM Standard: DDR3-1600/PC3-12800
Error Identifying: ECC
Signal Type: Unbuffered
Column Access Strobe (CAS): CL11
Rank: Dual Rank x8
Quantity of Pins: 240-pin
RAM Genre: UDIMM
Quantity of Modules: 1 x 8 GB
Rank: Rank 2
Cycle Time: 1.25ns
Cas: CL11
DRAM Organization 512Mx8
Number of DRAM: 18
Construction Type of DRAM: FBGA(78ball)
Standard: JEDEC
Type Height: 30mm
Voltage: 1,35V
