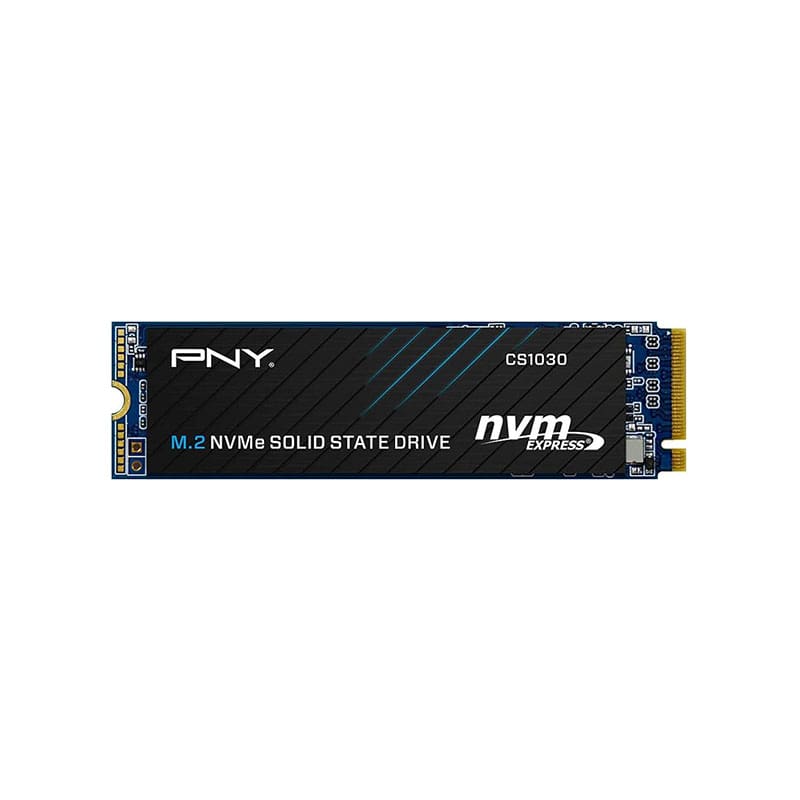

M280CS1030-500-RB Technical Specifications
PNY CS1030 SSD 500GB PCIe 3.0 x4 (NVMe)
Brand PNY
Product Line PNY
Model CS1030
Manufacturer Pny Electronics
Storage
Compliant Standards
S.M.A.R.T.
Form Factor (Short) M.2
Form Factor (Short) (metric) M.2
Hard Drive Capacity 500 GB
Hard Drive Features
Active State Power Management (ASPM), Autonomous Power State Transition (APST), ECC Recovery LDPC, End-to-end data path protection, L1.2 low-power mode, NVM Express (NVMe) 1.3, TRIM support
Hard Drive Type
Internal hard drive
HD Interface
PCI Express 3.0 x4 (NVMe)
Max Internal Data Transfer Rate 2000 MBps
Max Write Transfer Rate 1100 MBps
Storage Interface
PCI Express 3.0 x4 (NVMe)
Connectivity
Interface Provided
1 x PCI Express 3.0 x4 (NVMe)
Technical Information
Compatible Bay M.2 2280
Hard Drive Form Factor M.2 2280
Hard Drive Form Factor (metric) M.2 2280
Max Operating Temperature
158 degree Fahrenheit
Max Storage Temperature
185 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit
MTBF
2,000,000 Hours
Product Information
Packaged Quantity 1
Product Type
Solid state drive
Dimensions & Weight
Height 0.2 inch
Weight 0.23 ounce
Width 0.9 inch
Depth 3.1 inch
