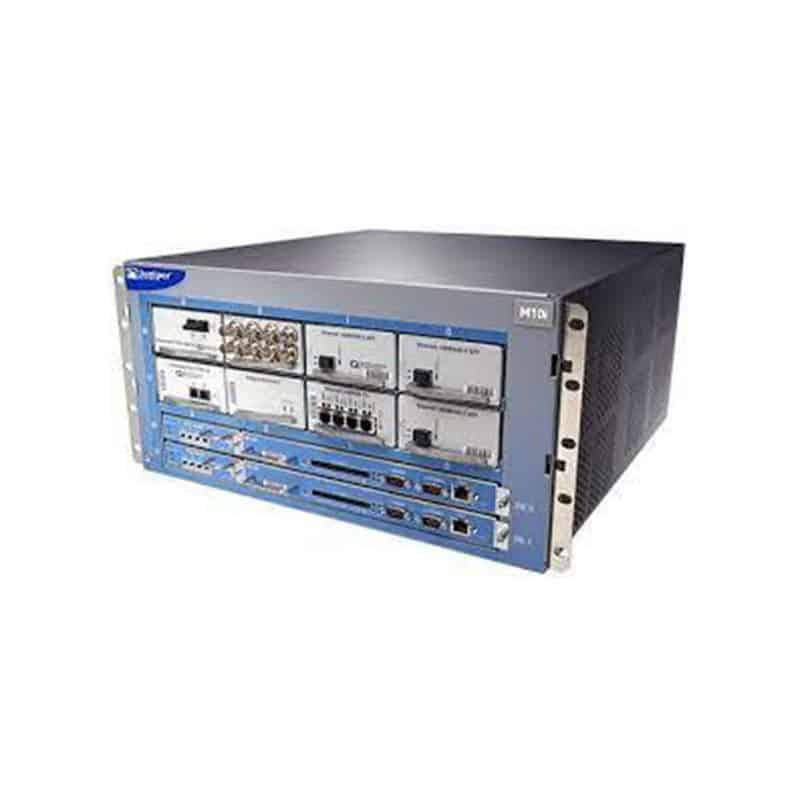

Refurbished M10IBASE-DC Technical Specifications
Juniper Networks M-series M10i modular expansion base desktop
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks M-series
Model :M10i
Packaged Quantity :1
Chassis
Installed Devices / Modules Qty :0
Supported Devices / Modules Qty :8
Networking
Type :Modular expansion base
Form Factor :Desktop
Modular :Modular
Connectivity Technology :Wired
Routing Protocol :IS-IS, IGMPv3, PIM-DM, PIM-SSM, PIM-SM, DVMRP, Static IP routing, RIP-2, BGP, OSPF
Network / Transport Protocol :IPSec, PPPoA, TCP/IP
Remote Management Protocol :SNMP 3, SNMP 2, HTTP
Status Indicators :Link OK, Fail, Link/activity, Alarm
Key Features :VPN support, Firewall
Features :56-bit encryption, VPN support, Firmware upgradable, Layer 3 switching, Traffic shaping, Layer 2 switching, IPv6 support, 168-bit encryption, MPLS support, Hot swap module replacement, Packet filtering, Modular design, VLAN support, Firewall protection, DoS attack prevention, DHCP support, DiffServ support, DDos attack prevention, High Availability, NAT support, Syslog support
Compliant Standards :IEEE 802.1Q
Expansion Slots
Expansion Slots :8 (total) / 8 (free) x expansion slot, PC Card
Interface Provided
Interfaces :Management: 1 x 10Base-T/100Base-TX – RJ-45, Management: 2 x RS-232 – 9 pin D-Sub (DB-9)
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :4
Nominal Voltage :DC -48/-60 V
Miscellaneous
Encryption Algorithm :MD5, DES, SHA-1, Triple DES
Authentication Method :RADIUS
Compliant Standards :AS/NZ 3548 Class B, FCC Part 15 B, EN 61000-4-4, IEC 825-1/EN 60825-1 class 1, EN 61000-3-2, EN 60950, EN 61000-4-3, BSMI, EN 61000-4-6, EN 61000-4-5, EMC, UL 60950, EN 61000-4-11, EN 61000-4-2, CSA C22.2 No. 60950-00, VCCI Class B ITE, NEBS level 3, EN55022 Class B
Dimensions & Weight
Width :17.5 inch
Depth :18 inch
Height :8.7 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90%
