LTF8505-BC-IN Technical Specifications

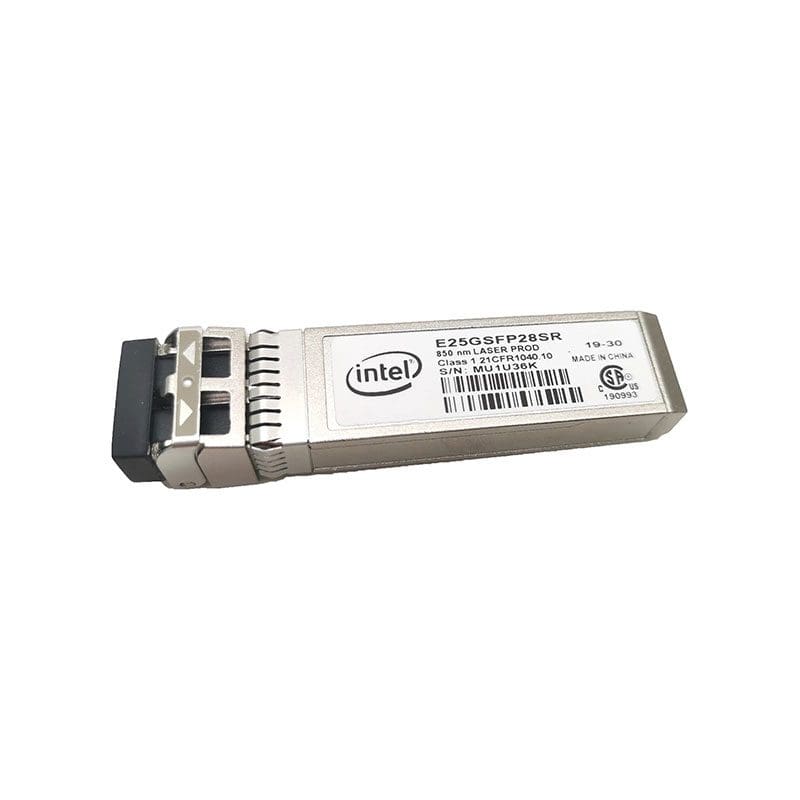

Intel Ethernet Optics SFP28 Transceiver 10GB 25GB LAN F/S
Brand: Intel
Package: SFP28
Interface: LC
Reach: 100m
Temp: Commercial
Fiber Type: Multi-mode
Wavelength: 850nm
Rate: 25Gb/s
Tx Output: -8.4~2.4dBm
Rx Input: -5.2dBm(OMA)
LC Duplex optical interface
Reach: max up to 100m on Om4 MMF
Bit rate:25.78Gb/s
+3.3 V power supply
Low DC power consumption
2×10 SFP+ MSA compliant package
High performance 850 nm VCSEL laser
High sensitivity PIN/TIA optical receiver
Multi Mode operation
RoHS compliance
