Home›Controllers›Broadcom Controllers›LSI00348 Broadcom Single SAS 4 Port 12GB/S PCIe 3.0 X8 SAS
Broadcom-LSI00348

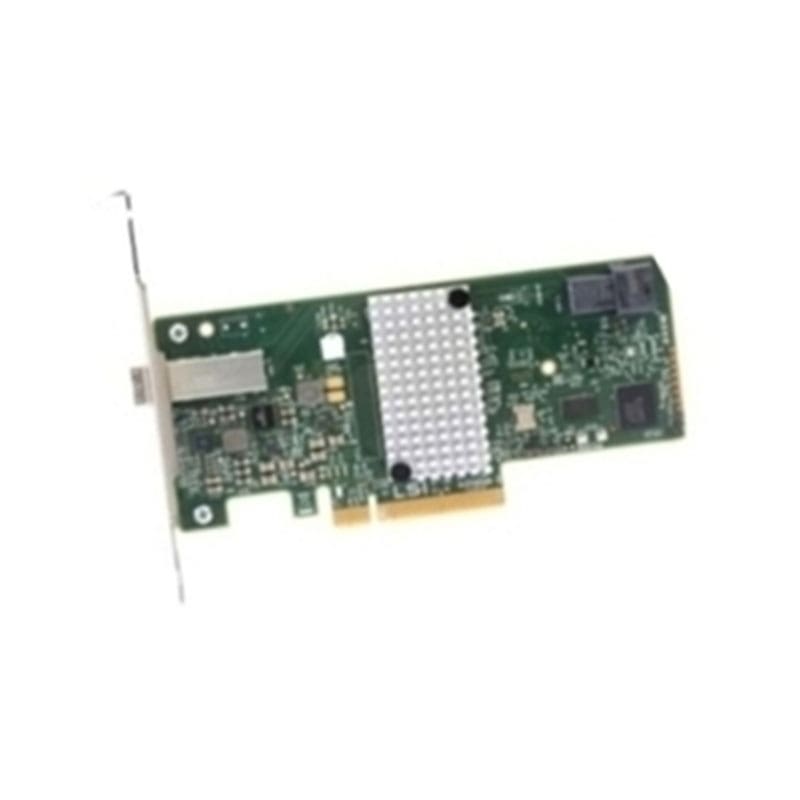

LSI00348 Broadcom Single SAS 4 Port 12GB/S PCIe 3.0 X8 SAS

LSI00348 Overview

The Broadcom LSI00348 HBA is an SAS HBA, which stands for Serial Attached SCSI. To comprehend the significance of this, we should first understand SAS technology.
SAS, or Serial Attached SCSI, is a high-speed data transfer technology used in enterprise storage systems. It is a protocol that allows for the connection and communication between a host (such as a server) and storage devices (like hard drives, solid-state drives, and tape drives). SAS offers several advantages in terms of speed, scalability, and reliability, making it a preferred choice for many data storage solutions.

$260

Buy Now
Availability: In Stock
SKU:LSI00348
Brand:

LSI00348 Technical Specifications

Broadcom Single SAS 4 Port 12Gigabytes Per Second (GBPS) Peripheral Component Interconnect Express (PCI-E) 3.0 X8 Serial-Attached SCSI (SAS) Host Bus Adapter

Brand: Broadcom
Type: SAS-SATA
Technical Information
Host Bus Type: PCIe 3.0 x8 Lane
Physical Dimensions: Low Profile (2.6″ x 6.0″)
Supported Devices: Up to 1024 non-RAID SAS/SATA devices
External Connectors: 1 x Mini-SAS HD SFF8644
Fusion MPT Support: Fusion MPT 2.5
Internal Connectors: 1 x Mini-SAS HD SFF8643
Internal Ports: 4
PCI Power: 14.2W
Cable Support: Passive copper, active optical (external only)
I/O Controller: LSI SAS3008
Operating Humidity: 5% to 90% non-condensing
Data Transfer Rates: 12GB/s SAS-3 compliant
