LSI00332 Technical Specifications

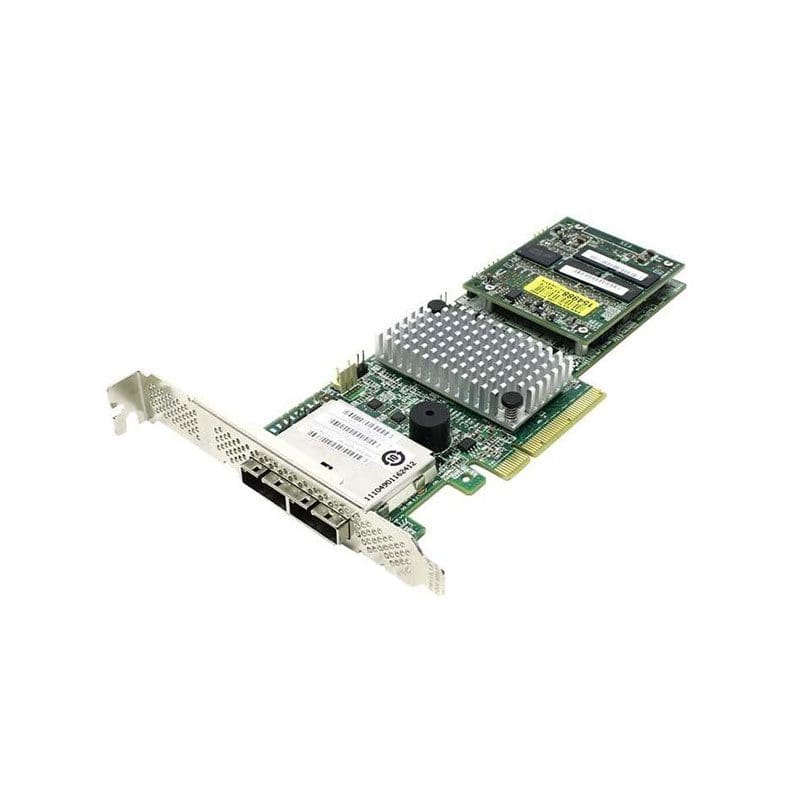

LSI Logic MegaRAID 8-Port External SATA/SAS 6Gbps PCI Express 3.0 x8 1GB Cache Low Profile RAID Controller Card
Manufacturer Part Number LSI00332
Brand Name LSI Logic
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels 0
1
10
50
60
5
6
Data Backup Type Battery Backup
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (Internal) 2
Number of SAS Ports (External) 2
SAS Connector Details 2 SFF-8088
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
SPARC
