LSI00190 Technical Specifications

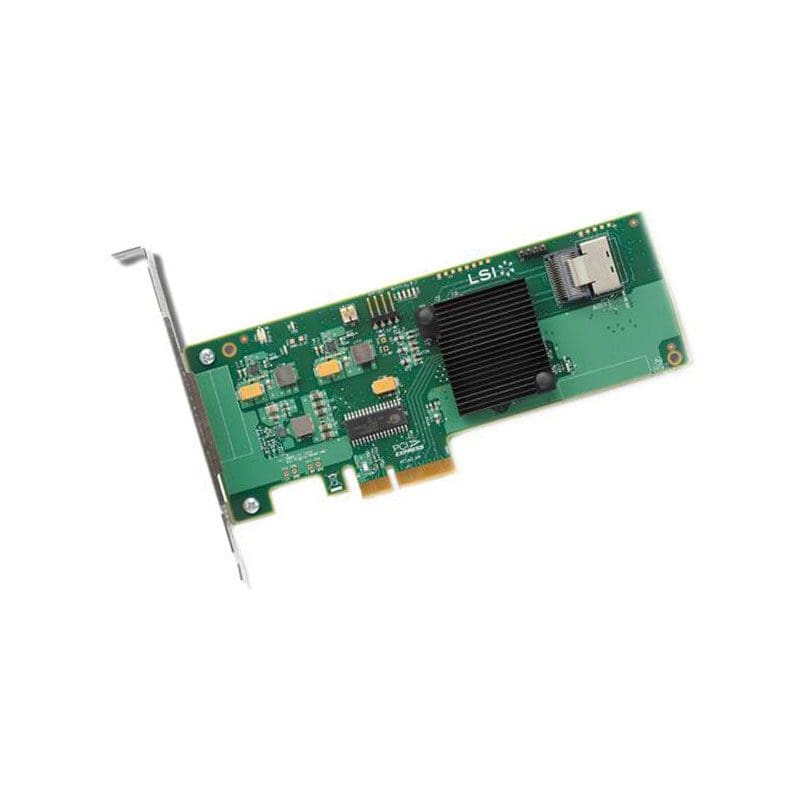

LSI Logic SAS 9211-4i 4-Port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x4 Low Profile RAID 0/1/1E/10 Controller Card
Manufacturer Part Number LSI00190
Brand Name LSI Logic
Product Type SAS Controller
Technical Information
Host Interface PCI Express x4
RAID Supported Yes
RAID Levels 0
1
1E
10
Interfaces/Ports
Total Number of SAS Ports 1
Number of SAS Ports (Internal) 1
SAS Connector Details 1 SFF-8087
Physical Characteristics
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
Environmentally Friendly Yes
Environmental Certification RoHS
