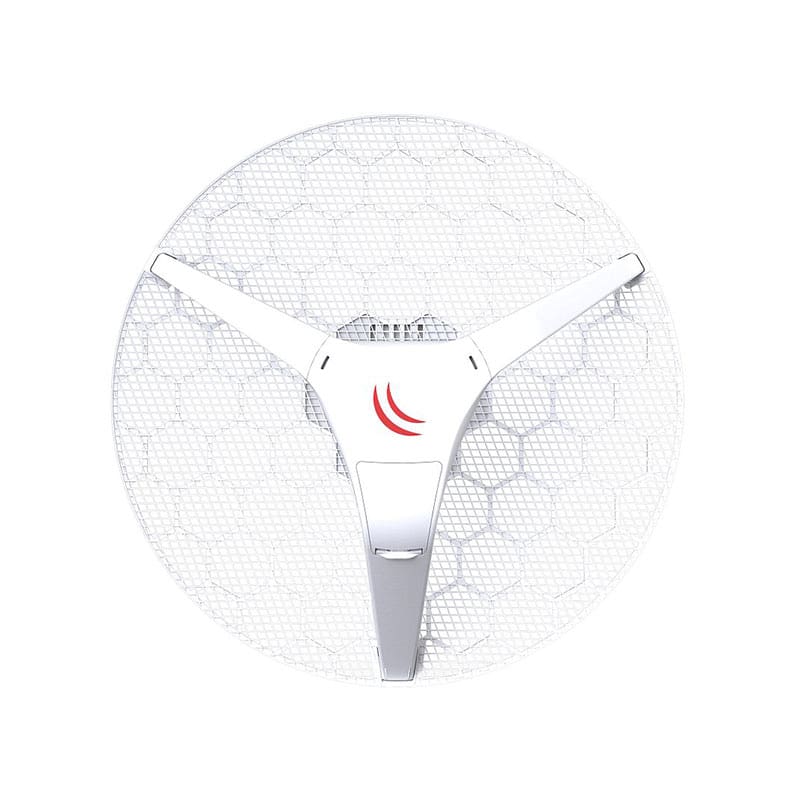

LHG HP5-US Technical Specification
Mikrotik 24.5dBi 5GHz antenna Dual Chain High Power 802.11an wireless
Manufacturer: Mikrotik
Brand: Mikrotik
Architecture: MIPSBE
CPU: AR9344
CPU core count: 1
CPU nominal frequency: 600 MHz
Dimensions: Ø 391 x 222 mm;
RouterOS license: 3
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type; FLASH
MTBF: Approximately 100’000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Powering
Number of DC inputs: 1 (PoE-IN)
Max power consumption: 7 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 10-28 V
Wireless specifications
Wireless 5 GHz Max data rate: 300 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n
Antenna gain dBi for 5 GHz: 24.5
Wireless 5 GHz chip model: AR9344
Wireless 5 GHz generation: Wi-Fi 4
Ethernet
10/100 Ethernet ports: 1
