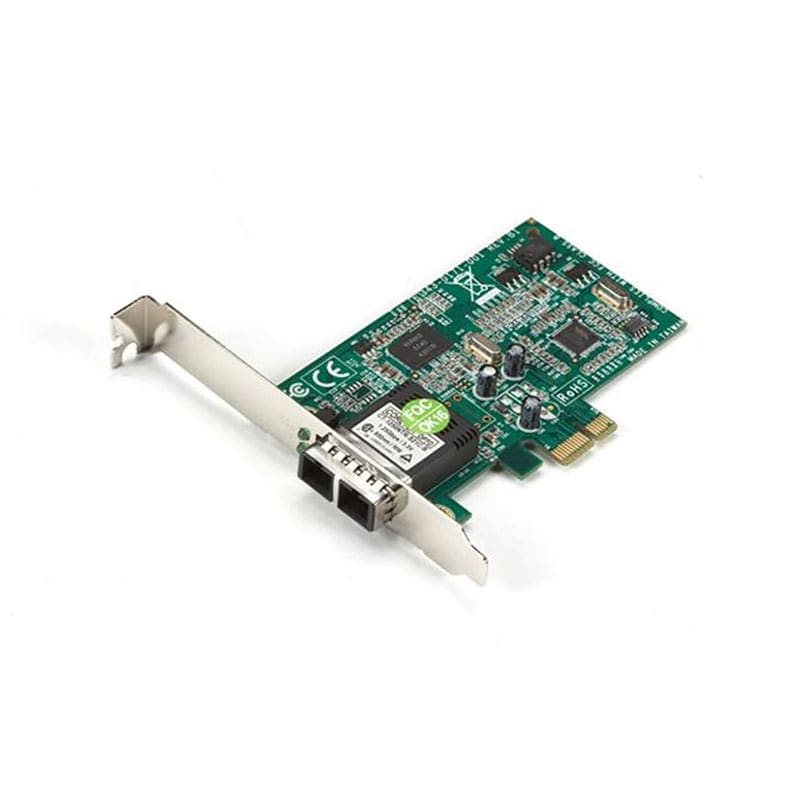

LH1690C-SC Technical Specifications
Black Box Fiber Adapter Network Adapter PCIe 1000Base-SX
Brand: Black Box
Product Line: Black Box
Model: Fiber Adapter
Manufacturer: Black Box
Network & Communication
Cable Type: Ethernet 1000Base-SX
Compliant Standards: IEEE 802.1Q, IEEE 802.3u, IEEE 802.3x
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Data Transfer Rate: 1 GBps
Features: Flow control, Full duplex capability, Packet filtering, VLAN support, Wake on LAN (WOL)
Form Factor: Plug-in card
Host Interface: PCI Express
Optical Wave Length: 850 nm
Product Type: Network adapter
Expansion Slots
Compatible Slots Required: 1 x PCI Express
Connectivity
Interface Provided: 1 x 1000Base-SX – SC multi-mode – x 2
Network & Adapter Ports: 1000Base-SX
Product Information
Packaged Quantity: 1
Certifications & Listings
Compliant Standards: FCC Class B certified, RoHS
