LBH110A-H-ST-24 Technical Specifications

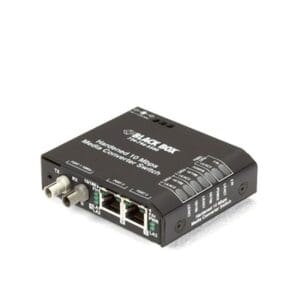

Black Box 4-Port 2x Network 2xST Ports Multi-Mode
Brand: Black Box
Product Line: Black Box Hardened Media Converter Switch
Model: 24-VDC
Manufacturer: Black Box
Cable Type: Ethernet 100Base-TX, Ethernet 10Base-T, Fiber optic
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet
Data Transfer Rate: 100 MBps
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Switching
Form Factor: DIN rail mountable
MAC Address Table Size: 2K entries
Max Transfer Distance: 1.2 miles
Product Type: Fiber media converter
Status Indicators: Link/activity, Port status, Power
Device Type: Internal power supply
Packaged Quantity: 1
Height: 3.5 inch
Weight: 3.53 ounce
Width: 3 inch
Depth: 1 inch
