LBE-5AC-XR-US Technical Specification

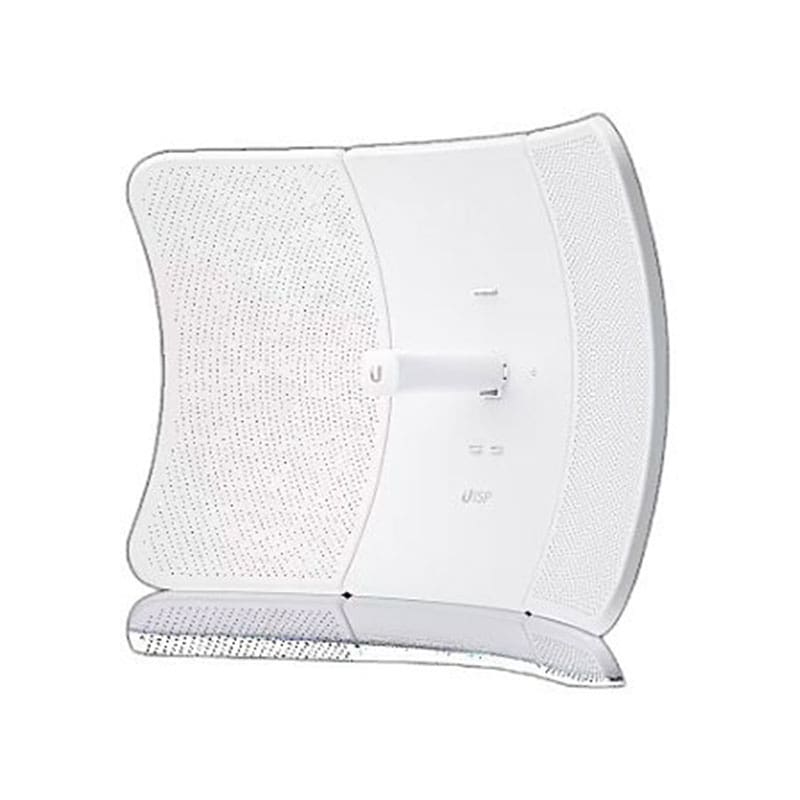

Ubiquiti AirMAX LiteBeam AC 5 GHz Bridge
Manufacturer: Ubiquiti
Brand: Ubiquiti AirMAX
Dimensions: 747 x 525 x 347 mm (29.41 x 20.67 x 13.66″)
Weight: 3.2 kg (7.06 lb)
Enclosure materials: Aluminum alloy, UV stabilized polycarbonate
Mount material: UV stabilized polycarbonate
Mount: Integrated pole mount(included) Pole compatibility: Ø35-60 mm (Ø1.38-2.36″)
Wind loading: 1100 N at 200 km/h (247.29 lbf at 125 mph)
Weatherproong: IPX6
Networking interfaces: (1) GbE RJ45 port
Button: Factory reset
LEDs: Power/ethernet
RF connections: Internal
Max. power consumption: 7W
Power method: Passive PoE 2-pair (4, 5+; 7, 😎
Power supply: 24VDC, 0.5A Gigabit PoE adapter (included)
Supported voltage range: 22-26VDC
Operating temperature: -40 to 70° C (-40 to 158° F)
Operating humidity: 5 to 95% non-condensing
Certications: FCC, IC, CE
Maximum throughput: 450+ Mbps
Encryption: WPA2-PSK (AES)
OS: airOS®
Modes: PtMP, PtP
