LBE-5AC-LR-US Technical Specifications

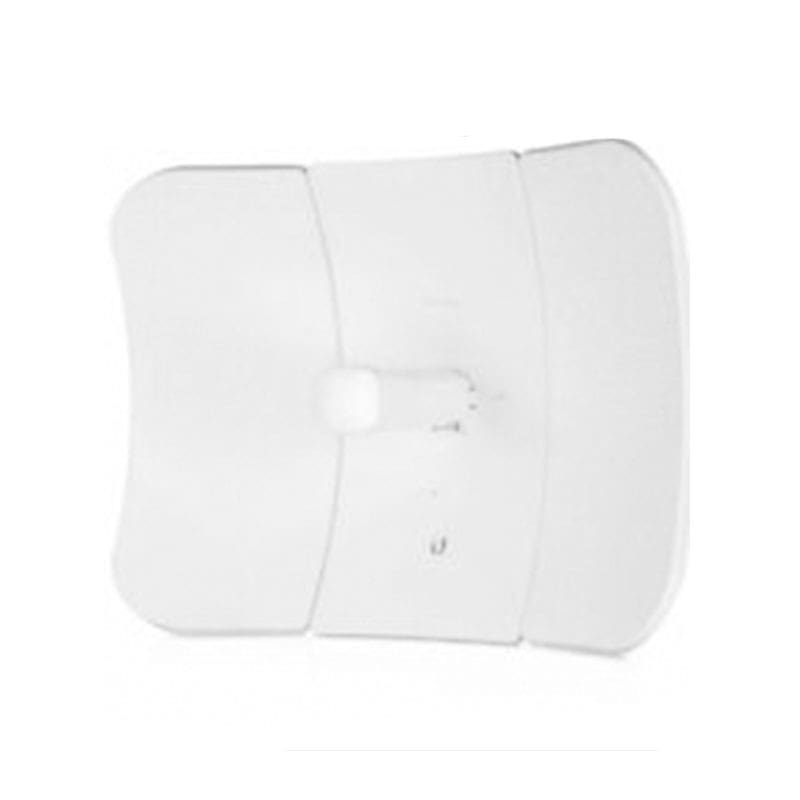

Ubiquiti Lite Beam ac LBE-5AC-LR – wireless bridge – Air Max ac
Brand Ubiquiti
Product Line Ubiquiti Lite Beam ac
Model LBE-5AC-LR
Manufacturer Ubiquiti
Processor
Processor Type MIPS 74KC
Processors Installed 1
Memory
Memory Technology
DDR2 SDRAM
RAM Installed
64 megabyte
Network & Communication
Connectivity Technology
Wireless Data Link Protocols
Air Max ac, Ethernet, Fast Ethernet, Gigabit Ethernet
Features 24KV ESD Protector, 2T2R MIMO technology, Pole mountable
Form Factor External
Frequency Band 5 GHZ
Power Over Ethernet (PoE) PoE
Product Type Wireless bridge
Status Indicators LAN, Power
Wireless LAN Air Max ac
Connectivity
Interface Provided
1 x 1000Base-T (PoE) – RJ-45
Power
Power Consumption Operational 7 watt
Technical Information
Antenna Gain Level 26 DBi
Max Operating Temperature
158 degree Fahrenheit
Min Operating Temperature
-40 degree Fahrenheit
Operating Humidity
5 – 95% (non-condensing)
Product Information
Country United States
Device Type Power injector
Packaged Quantity 1
Service Activation No
Network Device Throughput: 450 Mbps
Included Items
Included Accessories
Mounting kit, Pole mount
Dimensions & Weight
Height 11.2 inch
Weight 3 lbs
Width 20.2 inch
Depth 10.2 inch
