LB1606R Technical Specifications

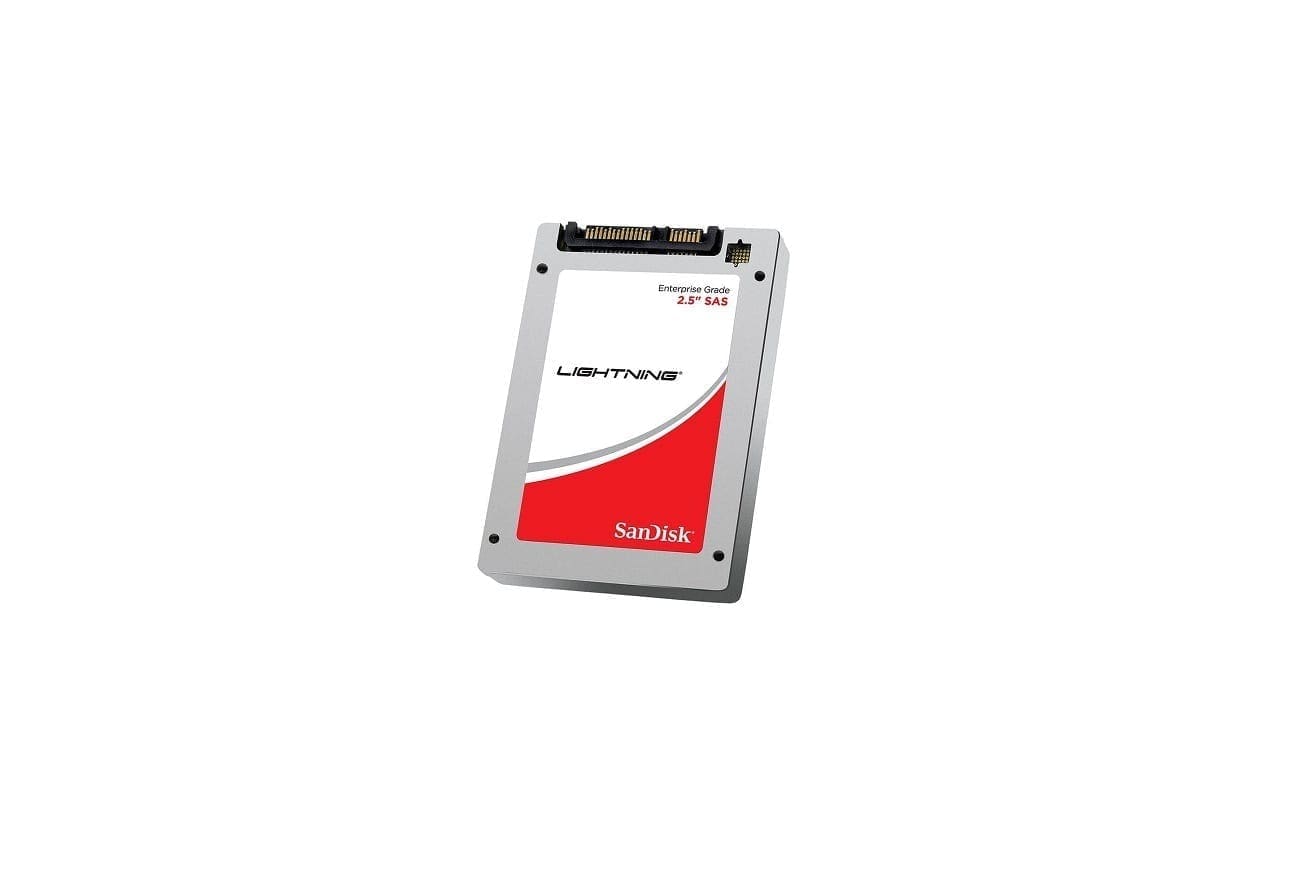

Sandisk Lightning Read intensive 1.6TB SAS 6Gbps Mlc 2.5Inch Solid State Drive
General information :
Manufacturer : sandisk
Product line : lightning read-intensive
Product name : sandisk lightning read-intensive 1.6tb solid state drive (SSD)
MLC NAND Flash
Technical information :
Storage capacity : 1.6 tb
Host interface : sas-6gbits
Interface/ports : dual (2) full-duplex
Form factor : 2.5 inch
Performance :
Data throughput (read/write) : 410/140 mbps
Total iops (read) : 78000 iops
Random read/write 4kb – 90/10 (single port) : 8000 iops
Random read/write 8kb – 90/10 (single port) : 26000 iops
Environmental specifications :
Operating temperatures : 0°c to 60°c
Storage temperatures : -40°c to 85°c
Start-up time (power-on to ready) : <15 seconds
Reliability :
Mlc page pairing protection : no risk of data loss
Unrecovered bit error rate (uber) : < 1 sector in 1016 bits read
End-to-end data protection : no performance impact
Patrol read (automatic) : no performance impact
Power-on hours : 8760 hours per year
Mtbf : 2 million hours
