L1416-016L04-040 Technical Specifications

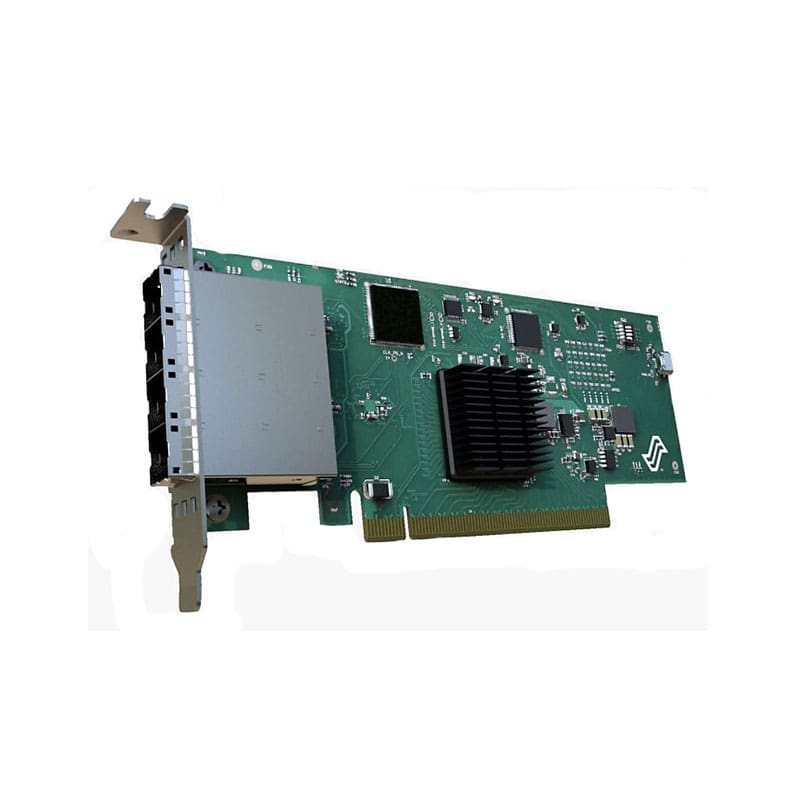

Liqid PCIe Gen 4×16 Host Bus Adapter
Brand: Liqid
Product Line: Liqid
Model: LQD1416
Manufacturer: Liqid
Processor
Processor Brand: Broadcom
Processor Number: PEX88032
Processors Installed: 1
Network & Communication
Connectivity Technology: Wired
Features: Direct Memory Access (DMA) support
Form Factor: Plug-in card
Host Interface: PCI Express 4.0 x16
PCI Specification Revision: PCIe 4.0
Product Type: Host bus adapter
Connectivity
Interface Provided: 4 – SFF-8644
Power
Power Consumption Operational: 15 watt
Technical Information
Max Operating Temperature: 131 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 – 90% (non-condensing)
Product Information
Packaged Quantity: 1
Performance: Data transfer rate: 256 GB/s
Dimensions & Weight
Height: 2.9 inch
Depth”: 6.1 inch
Physical Characteristics
Color Category: Green
