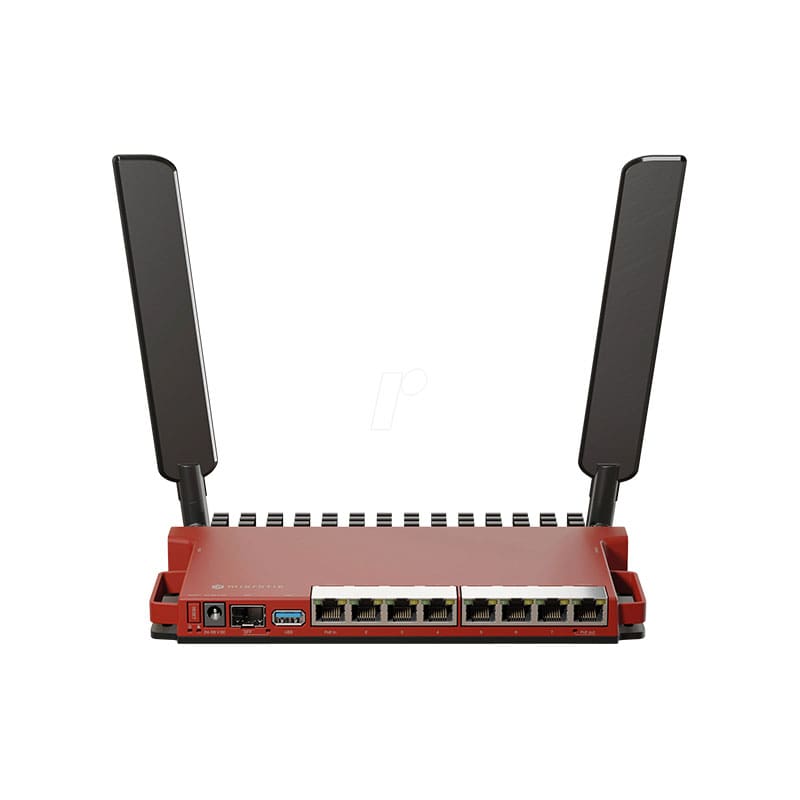

L009UiGS-2HaxD-IN Technical Specification
MikroTik 2.4 GHz 802.11b/g/n/ax dual-chain, 4 dBi Antenna 512MB RAM, Dual-Core IPQ-5018 800 MHz, RouterOS v7
Manufacturer: MikroTik
Architecture: ARM
CPU: IPQ-5018
CPU core count: 2
CPU nominal frequency: 800 MHz
Switch chip model: 88E6190
RouterOS license: 5
Operating System: RouterOS v7
Size of RAM: 512 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200’000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Wireless capabilities
Wireless 2.4 GHz Max data rate: 574 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz: 4
Wireless 2.4 GHz chip model: IPQ-5018
Wireless 2.4 GHz generation: Wi-Fi 6
WiFi speed: AX600
Ethernet
10/100/1000 Ethernet ports: 8
Number of 1G Ethernet ports with PoE-out: 1
Fiber
SFP ports: 1 (2.5G supported)
Peripherals
Serial console port: RJ45
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB 3.0 type A
Max USB current (A): 1.5
Powering
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 24-56 V
Max power consumption: 42 W
Max power consumption without attachments: 14 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 24-56 V
PoE-out
PoE-out ports: Ether8
PoE out: Passive PoE
Max out per port output (input 18-30 V): 1 A
Max out per port output (input 30-57 V): 450 mA
Max total out (A): 1.0 A
Certification & Approvals
Certification: CE, FCC, IC, EAC, ROHS
IP: 20
