KT-ES212X12HP Technical Specifications

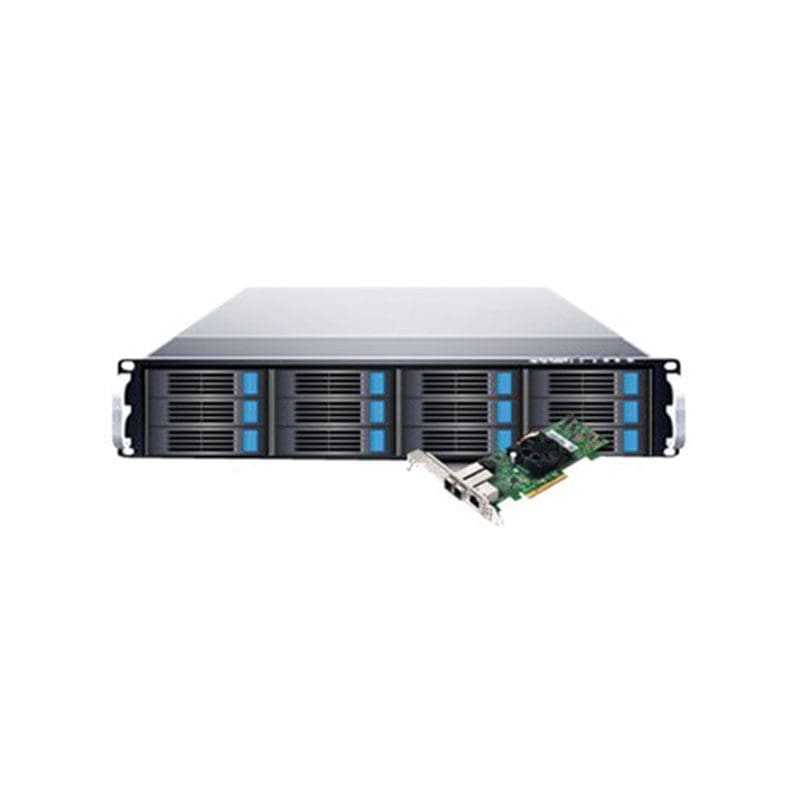

Sans Digital EliteSTOR Series ES212X12HP Hard Drive Array
Brand : Sans Digital
Manufacturer Part Number : KT-ES212X12HP
Expansion / Connectivity
Expansion Bays 12 (total) / 12 (free) x hot-swap – 3.5″
Interfaces 3 x SAS 12Gb/s – 36 pin 4x Shielded Mini MultiLane SAS (SFF-8644) ¦ 1 x SAS (cascading) – 36 pin 4x Shielded Mini MultiLane SAS (SFF-8644)
Type RAID (PCIe 3.0 x8)
Interface Type SATA 6Gb/s / SAS 6Gb/s
Data Transfer Rate 600 MBps
RAID Level RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 30, RAID 50, JBOD,
Supported Devices / Modules Qty 12
Supported Drives SATA-600 / SAS-2
Miscellaneous
Features Built-in 2 cooling fans
Cables Included 1 x SAS cable
Compliant Standards UL, FCC, RoHS
