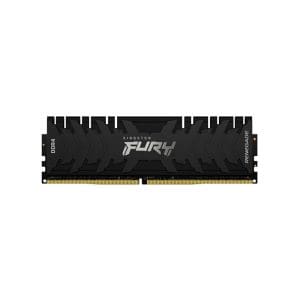

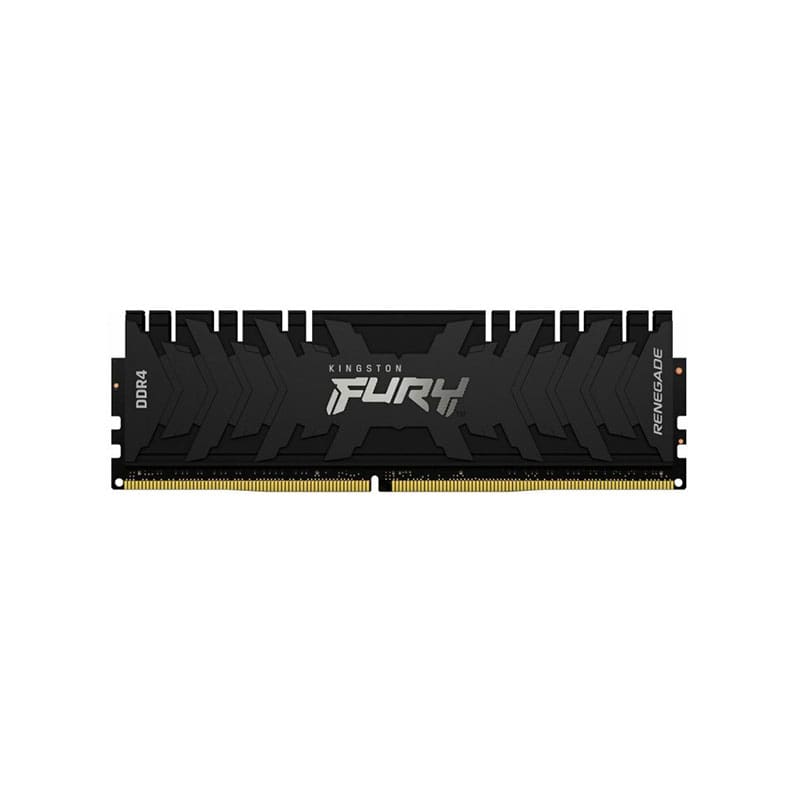

KF440C19RBK2/16 Kingston FURY Renegade Black 16GB Kit Memory Module

KF440C19RBK2/16 Overview

Kingston FURY Renegade Black 16GB Kit (2 X 8GB) PC4-32000 DDR4-4000MHz non-ECC Unbuffered CL19 288-Pin DIMM Memory Module. Kingston FURY KF440C19RBK2/16 is a kit of two 1G x 64-bit (8GB) DDR4-4000 CL19 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Total kit capacity is 16GB. Each module has been tested to run at DDR4-4000 at a low latency timing of 19-23-23 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Availability: In Stock
SKU:KF440C19RBK2/16
Brand:

KF440C19RBK2/16 Technical Specifications

Kingston FURY Renegade Black 16GB Kit (2 X 8GB) PC4-32000 DDR4-4000MHz non-ECC Unbuffered CL19 288-Pin DIMM Memory Module

Manufacturer: Kingston
Brand: Kingston
Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
On-Die termination (ODT)
16 internal banks; 4 groups of 4 banks each
Bi-Directional Differential Data Strobe
8 bit pre-fetch
Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
Height 1.66” (42.2mm), w/heatsink
