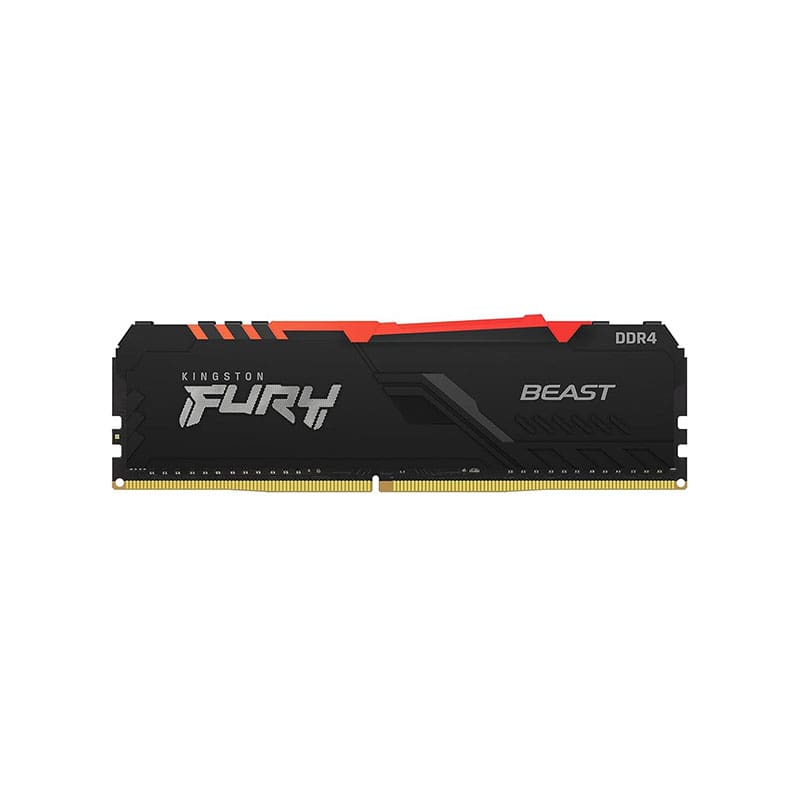

KF436C17BBAK4/32 Kingston FURY Beast RGB 32GB Kit Memory Module

KF436C17BBAK4/32 Overview

Kingston FURY Beast RGB 32GB Kit (4 X 8GB) PC4-28800 DDR4-3600MHz non-ECC Unbuffered CL17 288-Pin DIMM 1.35V Single Rank Memory Module. Kingston FURY KF436C17BBAK4/32 is a kit of four 1G x 64-bit (8GB) DDR4-3600 CL17 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 32GB. Each module has been tested to run at DDR4-3600 at a low latency timing of 17-21-21 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

$125

Buy Now
Availability: In Stock
SKU:KF436C17BBAK4/32
Brand:

KF436C17BBAK4/32 Technical Specifications

Kingston FURY Beast RGB 32GB Kit (4 X 8GB) PC4-28800 DDR4-3600MHz non-ECC Unbuffered CL17 288-Pin DIMM 1.35V Single Rank Memory Module

Manufacturer: Kingston
Brand: Kingston
Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
On-Die termination (ODT)
16 internal banks; 4 groups of 4 banks each
Bi-Directional Differential Data Strobe
8 bit pre-fetch
Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
Height 1.62” (41.2mm), w/heatsink
