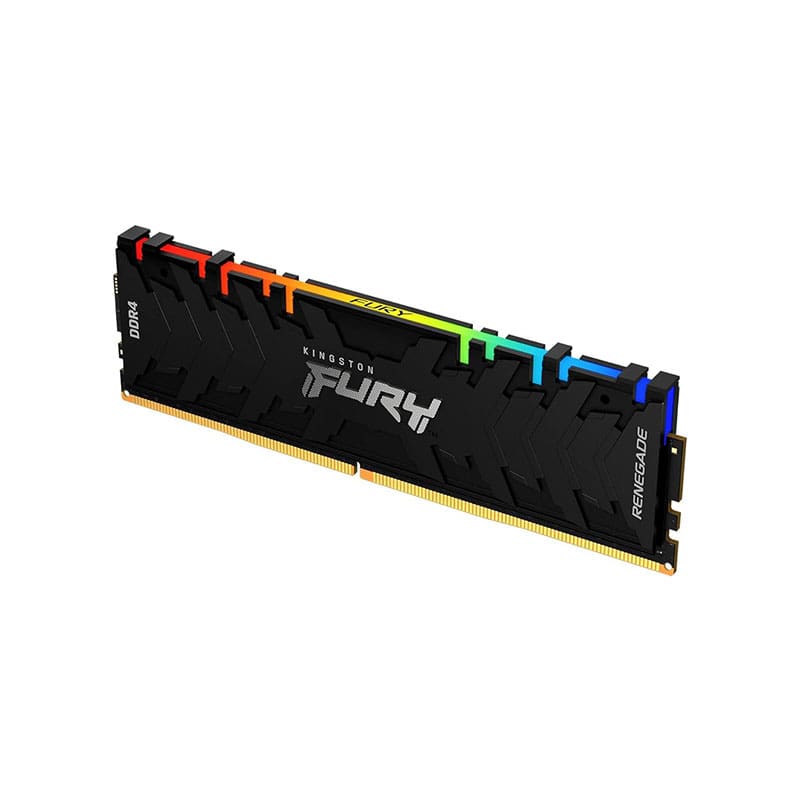

KF430C16RBA/32 Kingston FURY Renegade RGB 32GB PC4-24000 Memory Module

KF430C16RBA/32 Overview

Kingston FURY Renegade RGB 32GB PC4-24000 DDR4-3000MHz non-ECC Unbuffered CL16 288-Pin DIMM Memory Module. Kingston FURY KF430C16RBA/32 is a 4G x 64-bit (32GB) DDR4-3000 CL16 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-3000 at a low latency timing of 16-19-19 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers

$124

Buy Now
Availability: In Stock
SKU:KF430C16RBA/32
Brand:

KF430C16RBA/32 Technical Specifications

Kingston FURY Renegade RGB 32GB PC4-24000 DDR4-3000MHz non-ECC Unbuffered CL16 288-Pin DIMM Memory Module

Manufacturer: Kingston
Brand: Kingston
Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
On-Die termination (ODT)
16 internal banks; 4 groups of 4 banks each
Bi-Directional Differential Data Strobe
8 bit pre-fetch
Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
Height 1.66” (42.2mm), w/heatsink
