JX-2SHDSL-S Technical Specifications

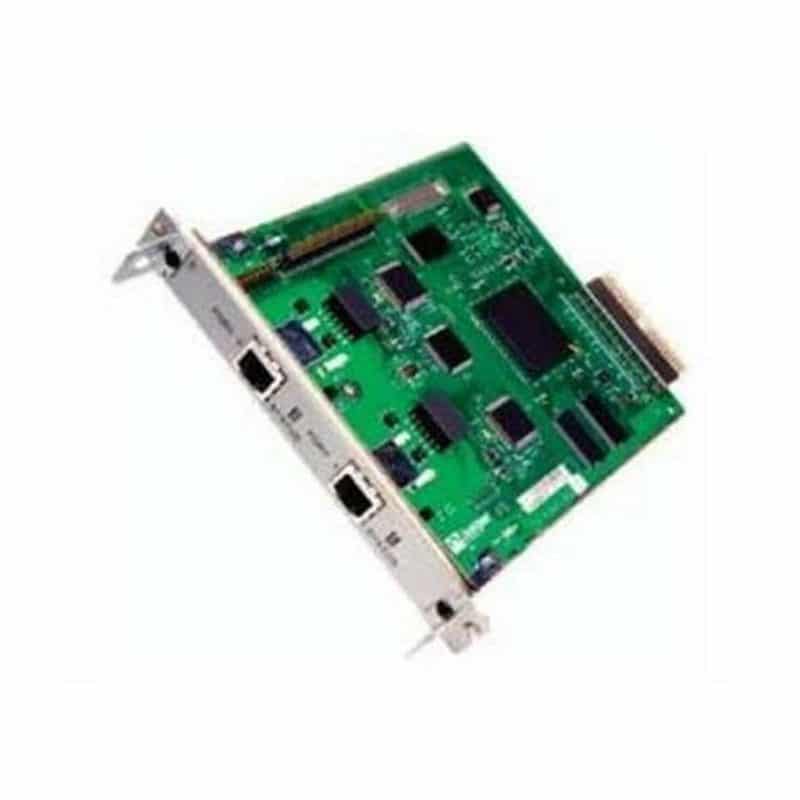

Juniper Networks G.SHDSL Physical Interface Module (PIM) DSL modem
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :G.SHDSL Physical Interface Module (PIM)
Packaged Quantity :1
Modem
Type :DSL modem
Form Factor :Internal
Connectivity Technology :Wired
Max Transfer Rate :4.6 MBps
Digital Signaling Protocol :SHDSL
Protocols & Specifications :ITU G.997.1, ITU G.991.2 (G.shdsl), ITU G.994.1 (G.hs)
Networking
Remote Management Protocol :HTTP, Telnet
Features :Manageable
Interface Provided
Interfaces :2 x modem – SHDSL
Slot Required
Compatible Slots :1 x expansion slot
Miscellaneous
Compliant Standards :FCC Part 15 B, IEC 60950, UL 60950 Third Edition, ETSI, EN 61000-4-5, EN 61000-4-6, CSA 22.2 No. 60950, EN 61000-4-2, EN 61000-4-4, EN 61000-4-3, IC CS-03, VCCI Class B ITE, EN 61000-4-11, EN55024, FCC Part 68, EN 60950, EN55022 Class B, BSMI
