JSA7500-BSE Technical Specifications

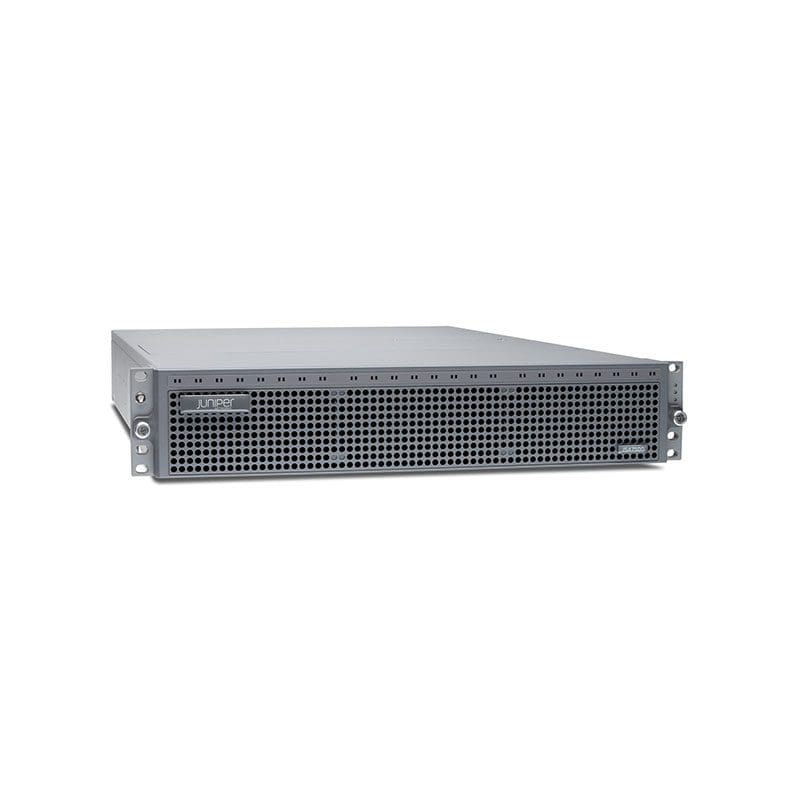

Juniper Networks JSA Series JSA7500 security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks JSA Series
Model :JSA7500
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Processor
Installed Qty :2
RAM
Installed Size :128 GB
Storage Controller
RAID Level :RAID 10
Hard Drive
Type :HDD
Interface Type :Serial ATA-300 / SAS
Installed Qty :28
Capacity :900 GB
Performance
Performance :Flow capacity: 1200000 flows per minute, Event traffic: 30000 events per second
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :4
Connectivity Technology :Wired
Data Link Protocol :Fast Ethernet, Ethernet, Gigabit Ethernet
Data Transfer Rate :1 GBps
Features :Store and forward, Flow control, Front to back airflow, IPFIX, sFlow, Redundant hot swappable fans, J-Flow
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot
Interface Provided
Interfaces :1 x console – RJ-45, 4 x 1000Base-T – RJ-45
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Power Provided :750 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Height (Rack Units) :2
Encryption Algorithm :SHA
Compliant Standards :NEBS level 3, EN 61000-3-2, FCC Class A certified, IEC 60950-1, PCI DSS, SOX, HIPAA, UL 60950-1, CAN/CSA C22.2 No. 60950-1-03, EN55024, VCCI Class A, EN 60950-1, EN55022 Class A
Dimensions & Weight
Width :23.5 inch
Depth :17.3 inch
Height :3.5 inch
Weight :63.05 lbs
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :8 – 90% (non-condensing)
