JSA5800-BSE Technical Specifications

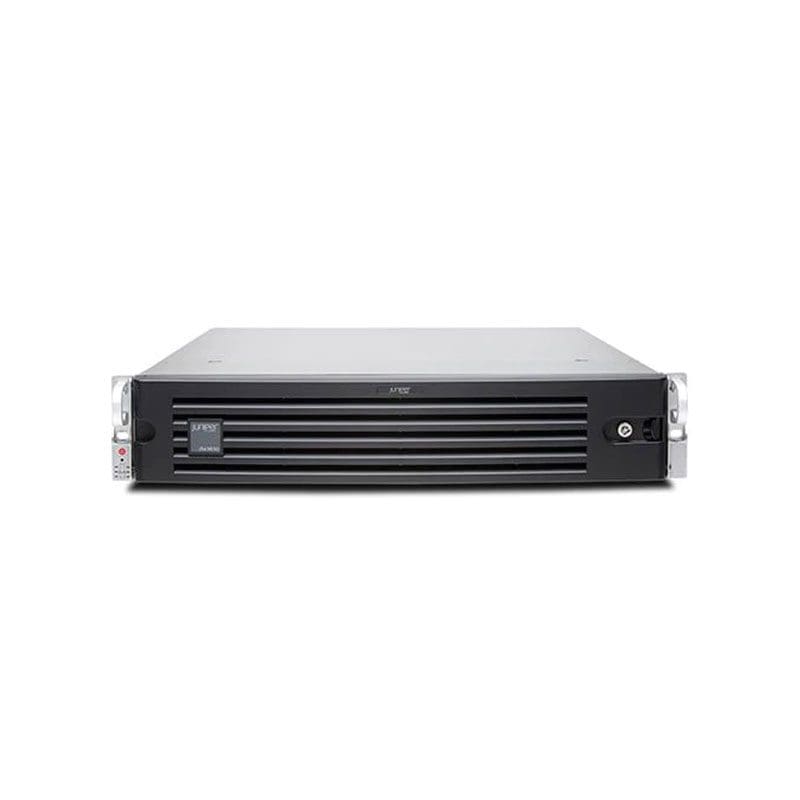

Juniper Networks JSA Series JSA5800 security appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks JSA Series
Model :JSA5800
Packaged Quantity :1
Processor
Installed Qty :2
RAM
Installed Size :128 GB
Storage Controller
RAID Level :RAID 10
Hard Drive
Type :HDD
Form Factor :2.5″
Form Factor (metric) :6.4 cm
Interface Type :Serial ATA-300 / SAS
Installed Qty :8
Capacity :900 GB
Performance
Performance :Event traffic: 20000 events per second, Flow capacity: 600000 flows per minute
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, Fast Ethernet, 10 Gigabit Ethernet, Ethernet
Data Transfer Rate :10 GBps
Features :Flow control, J-Flow, 3 fans, sFlow, Store and forward, IPFIX, NetFlow
Interface Provided
Interfaces :2 x 10Gb Ethernet – SFP+, 1 x console – RJ-45, 4 x 1000Base-T – RJ-45
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Power Provided :920 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Height (Rack Units) :2
Encryption Algorithm :SHA
Compliant Standards :KN22 Class A, CISPR 22 Class A, UL 60950-1, EN 61000-3-3, BSMI CNS 13438 Class A, RoHS, ICES-003 Class A, CSA 22.2 No. 60950-1, CISPR 24, EN55024, EN 61000-3-2, FCC CFR47 Part 15, EN 60950-1, IEC 60950-1, VCCI Class A, AS/NZS CISPR 22, EN 300386, EN55022 Class A
Dimensions & Weight
Width :17.2 inch
Depth :24.8 inch
Height :3.5 inch
Weight :41.89 lbs
Service & Support
Type :1-year warranty
Service & Support Details
Service & Support :Limited warranty – software application support – 90 days, Limited warranty – 1 year
Environmental Parameters
Min Operating Temperature :50 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :8 – 90% (non-condensing)
