JL686A#ABA Technical Specifications

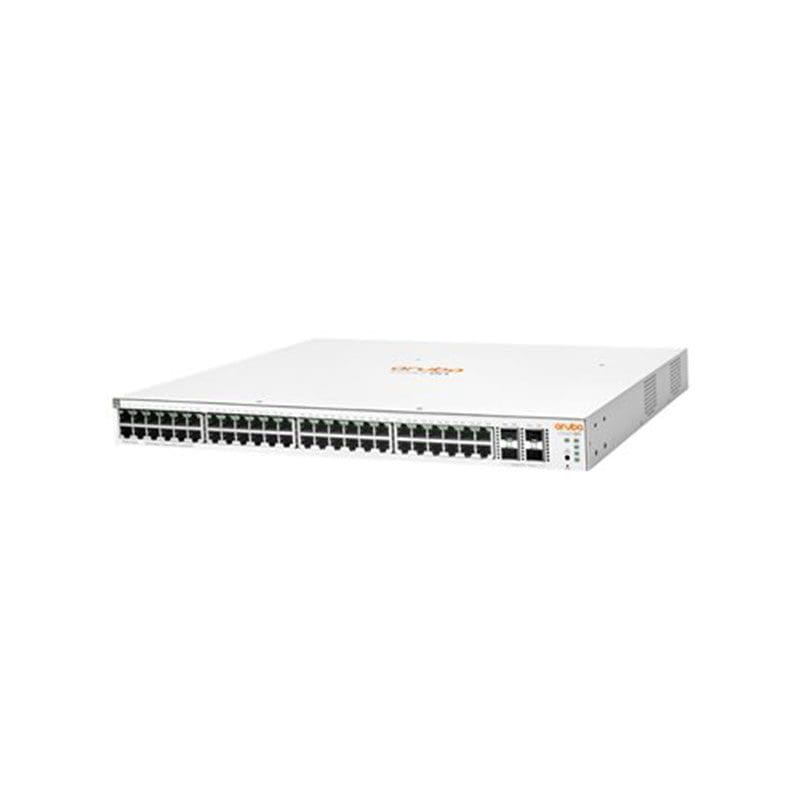

Aruba Instant On 1930 48-Port Gigabit PoE+ Compliant Managed Switch with 10Gb SFP+
Manufacturer: Aruba
Manufacture Part Number: JL686A#ABA
Dimensions & Weight
Width: 17.4 in
Depth: 12.7 in
Height: 1.7 in
Weight: 9.96 lbs
Manufacturer Warranty
Service & Support: Limited warranty – lifetime
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 15 – 95% (40 °C)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 – 95% (60 °C)
General
Device Type: Switch – 52 ports – L3 – managed
Enclosure Type: Rack-mountable 1U
Sub type: Gigabit Ethernet
Power Over Ethernet (PoE): PoE
PoE Budget: 370 W
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: Static IP routing
Encryption Algorithm: SSL
Authentication Method: RADIUS
Power
Power Device: Internal power supply
