Jl682A Technical Specifications

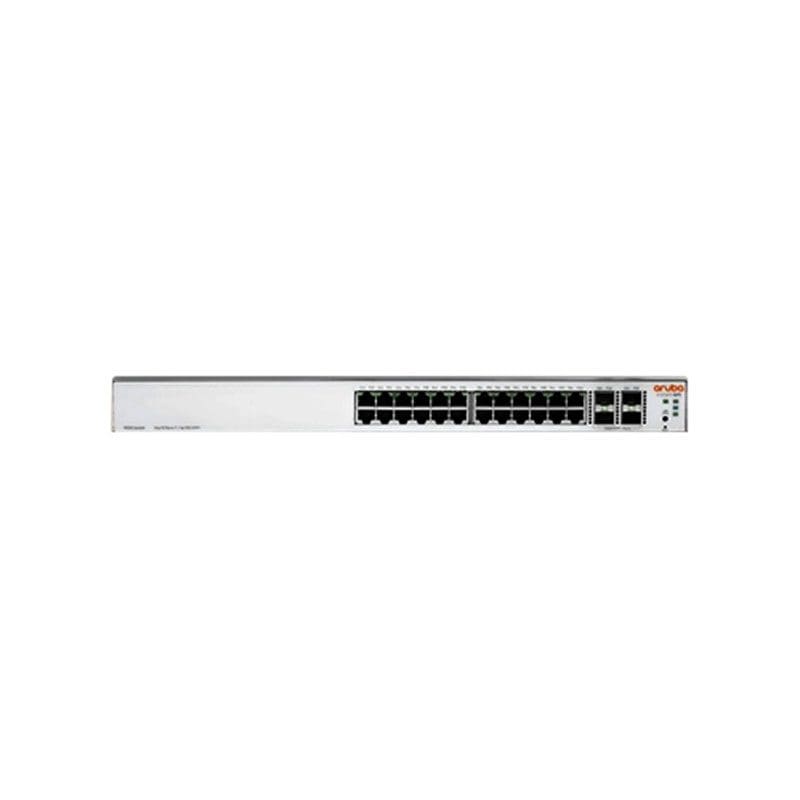

HPE Aruba Instant On 1930 24g 4sfp/sfp+ Switch 28 Ports Managed Rack mountable
Manufacturer Part Number :Jl682A
Device Type : Switch – 28 Ports – L3 – Managed
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 + 4 X 1 Gigabit / 10 Gigabit Sfp+
Performance : Switching Capacity: 128 Gbps ¦ Throughput: 95.23 Mpps ¦ Latency (1 Gbps): 2.4 Μs ¦ Latency (10 Gbps): 1.3 Μs
Capacity : Link Aggregation Ports: 8 ¦ Ipv4 Routes (static): 32 ¦ Vlans Supported: 256 ¦ Access Control Entries (aces) Per Acl: 480 ¦ Packet Buffer Size: 1.5 Mb
Mac Address Table Size : 16000 Entries
Jumbo Frame Support : 9216 Bytes
Routing Protocol : Static Ip Routing
Remote Management Protocol : Snmp 1, Rmon, Snmp 3, Snmp 2c, Http, Https, Tftp, Radius
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az
Expansion / Connectivity :
Interfaces : 24 X 10/100/1000 Base-t Rj-45 ¦ 4 X 1/10gbit Lan Sfp+
Power :
Power Device : Internal Power Supply
Voltage Required : Ac 120/230 V (50/60 Hz)
Power Consumption Operational : 22.6 Watt
