JL679A Technical Specifications

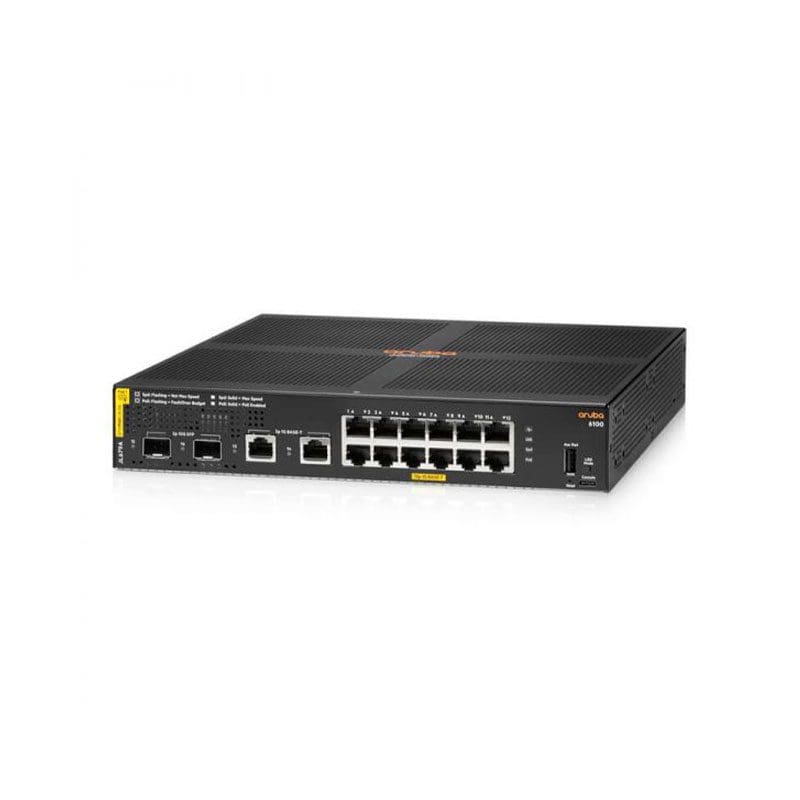

Aruba 6100 Ethernet Switch – 12 Ports – Manageable – 2 Layer Supported – Modular – 21.90 W Power Consumption – 139 W PoE Budget – Optical Fiber, Twisted Pair – PoE Ports – 1U High – Wall Mountable,
Device Type : Switch – 16 Ports – Managed – Stackable
Enclosure Type : Rack-mountable 1u
Subtype : 10 Gigabit Ethernet
Ports : 12 X 10/100/1000 (poe+) + 2 X 1 Gigabit / 10 Gigabit Sfp+ + 2 X 1000base-t
Power Over Ethernet (poe) : Poe+
Poe Budget : 139 W
Performance : Switching Capacity: 68 Gbps ¦ Throughput: 45.1 Mpps ¦ Latency (1 Gbps): 2.3 Μs ¦ Latency (10 Gbps): 2.6 Μs
Capacity : Switched Virtual Interfaces (svis): 16 ¦ Arp Entries: 1024 ¦ Ipv4 Routes (unicast): 512 ¦ Ipv6 Routes (unicast): 512 ¦ Igmp Groups: 512 ¦ Mld Groups: 512 ¦ Ipv4 Acl Entries (ingress): 256 ¦ Ipv6 Acl Entries (ingress): 128 ¦ Mac Acl Entries (ingress): 256
Mac Address Table Size : 8192 Entries
Routing Protocol : Igmpv2, Igmpv3
Encryption Algorithm : Ssl
Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3at, Ieee 802.3az
Processor : 1 X Arm A9: 1.016 Ghz
Ram : 4 Gb Ddr3 Sdram
Flash Memory : 16 Gb
