JL678A Technical Specifications

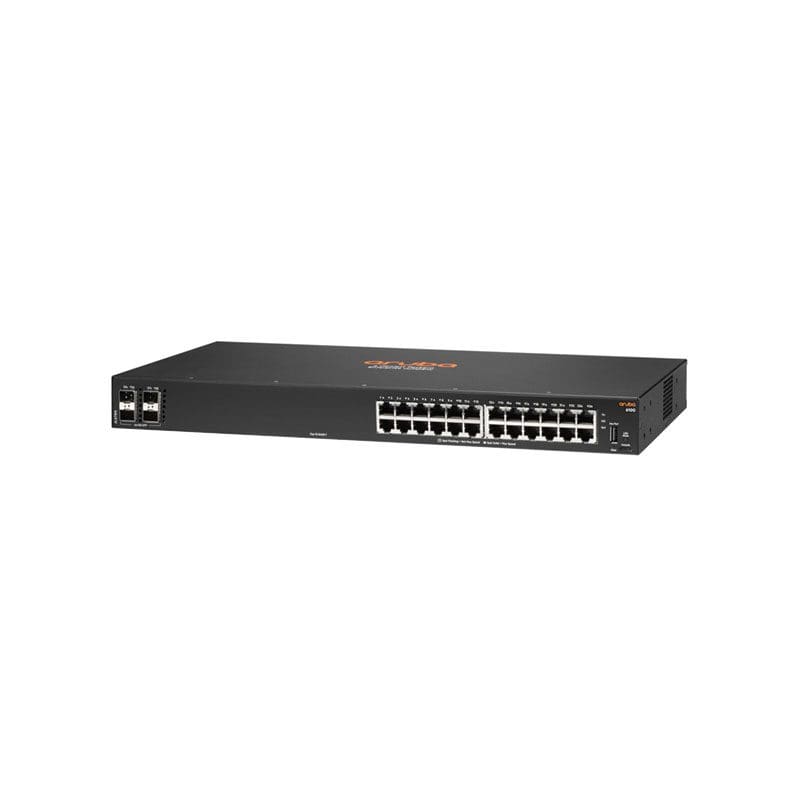

HPE Aruba 6100 24g 4sfp+ Switch 28 Ports Managed Rack mountable
Device Type : Switch – 28 Ports – L3 – Managed – Stackable
Enclosure Type : Side To Side Airflow Rack-mountable 1u
Subtype : 10 Gigabit Ethernet
Ports : 24 X 10/100/1000 + 4 X 1 Gigabit / 10 Gigabit Sfp+
Performance : Switching Capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 Μs ¦ Latency (10 Gbps): 1.8 Μs
Capacity : Switched Virtual Interfaces (svis): 16 ¦ Arp Entries: 1024 ¦ Ipv4 Routes (unicast): 512 ¦ Ipv6 Routes (unicast): 512 ¦ Igmp Groups: 512 ¦ Mld Groups: 512 ¦ Ipv4 Acl Entries (ingress): 256 ¦ Ipv6 Acl Entries (ingress): 128 ¦ Mac Acl Entries (ingress): 256
Mac Address Table Size : 8192 Entries
Routing Protocol : Igmpv2, Igmpv3
Encryption Algorithm : Ssl
Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3az
Processor : 1 X Arm A9: 1.016 Ghz
Ram : 4 Gb Ddr3 Sdram
Flash Memory : 16 Gb
Expansion / Connectivity :
Interfaces :
24 X 10/100/1000 Base-t Rj-45 ¦ 4 X 1/10gbit Lan Sfp+ ¦ 1 X Usb-c Console ¦ 1 X Usb Type A
Power :
Power Device : Internal Power Supply
Power Provided : 65 Watt
Voltage Required : Ac 230 V (50/60 Hz)
Power Consumption Operational : 15.4 Watt
