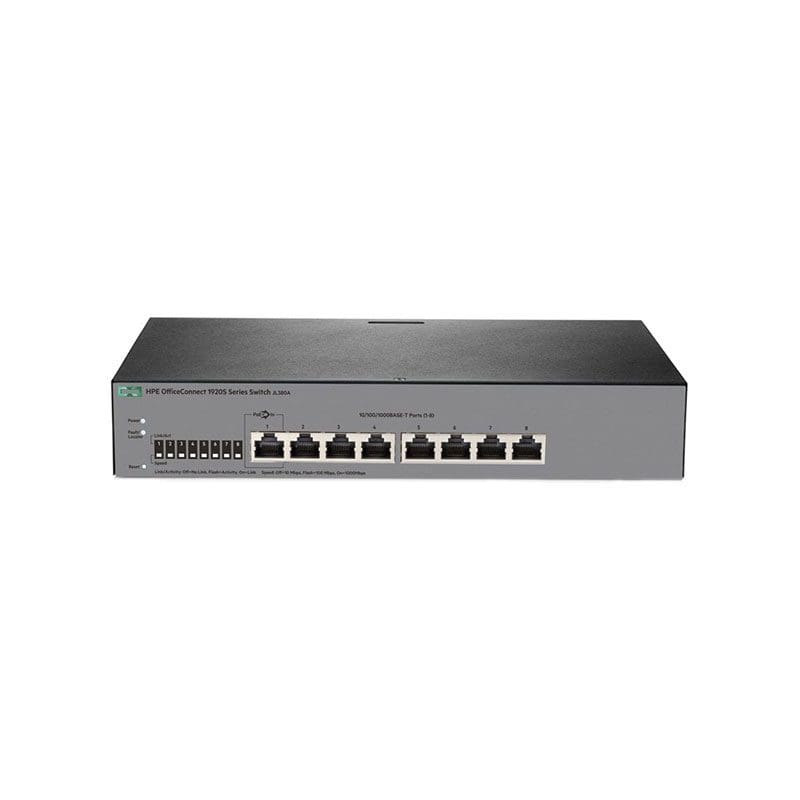

JL380A Technical Specifications
HPE Officeconnect 1920s 8G Switch L3 Managed 8 X 10/100/1000 Desktop, Rack-Mountable, Wall-Mountable
GENERAL INFORMATION :
Device Type: Switch – 8 Ports – L3 – Managed Officeconnect 1920s
Enclosure Type: Desktop, Rack-Mountable, Wall-Mountable 1u
Subtype: Gigabit Ethernet
Ports: 8 Port Network Switch
Performance: Latency (100 Mbps): 7 µs ¦ Latency (1 Gbps): 2.4 µs ¦ Throughput: Up To 11.9 Mpps ¦ Routing/Switching Capacity: 16 GBPS
Capacity: Routing Table Entries: 32
Mac Address Table Size: 8000 Entries
Jumbo Frame Support: 9216 Bytes
Routing Protocol: Igmp, Static Ipv4 Routing
Remote Management Protocol: Snmp 1, Rmon, Snmp 3, Snmp 2c, Http, Https
Authentication Method: Radius
Compliant Standards: IEEE 802.1d, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (Lacp), IEEE 802.1w, IEEE 802.1s
Processor: 1 X Arm Cortex-A9: 400 MHz
Ram: 256 Mb Sdram
Flash Memory: 64MB
EXPANSION / CONNECTIVITY:
Interfaces: 8 X 1000base-T – Rj-45
POWER:
Voltage Required: Ac 120/230 V (50/60 Hz)
