JL261A Technical Specifications

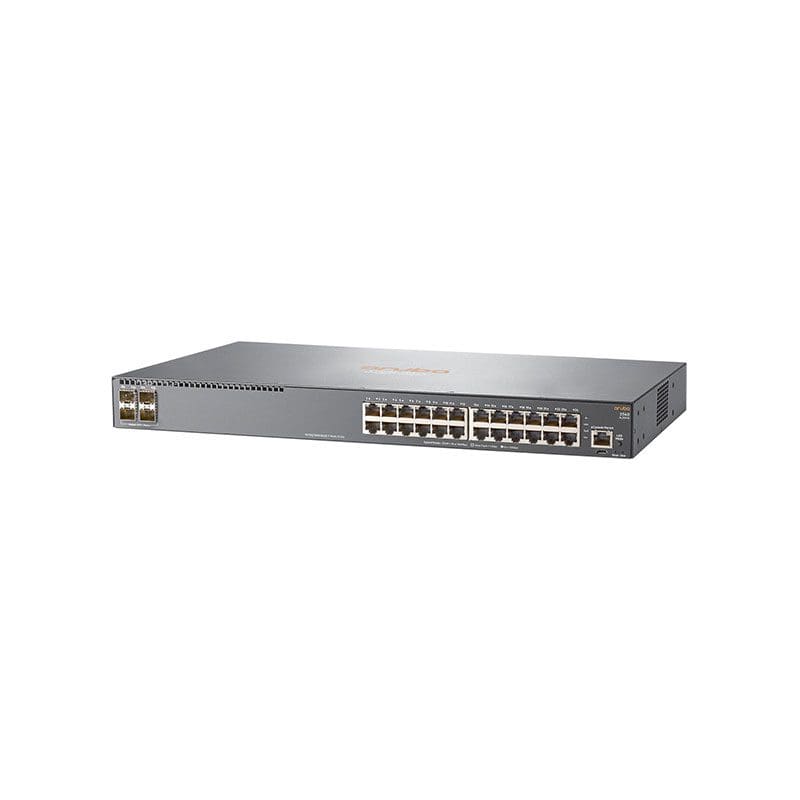

HP Aruba 2930f 24G PoE+ 4sfp Switch 24 Ports Managed Rack-Mountable
GENERAL INFORMATION :
Device Type : HP Aruba – Switch – 24 Ports Network Switch – L3 – Aruba 2930f – Stackable
Enclosure Type : Rack-Mountable – 1u
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 (Poe+) + 4 Sfp Port (Uplink)
Power Over Ethernet (Poe) : Poe+
Performance : Throughput : 41.7 Mpps ¦ Switching Capacity : 56 Gbps ¦ Latency (1 Gbps) : 3.8 µs
Capacity : Jumbo Frame Size : 9220 ¦ Ipv4 Routing Table Entries : 10000 ¦ Ipv6 Routing Table Entries : 5000
Mac Address Table Size : 32k Entries
Flash Memory : 4 Gb
EXPANSION / CONNECTIVITY :
Interfaces : 24 X 1000base-T – Rj-45 – Poe+ ¦ 4 X Gigabit Lan – Sfp ¦ 1 X Serial (Console)
Expansion Slots : 1 (Total) / 1 (Free) X Expansion Slot
Installed Modules Qty (Max) : 0 (Installed) / 4 (Max)
