JL260A#AKM Technical Specifications

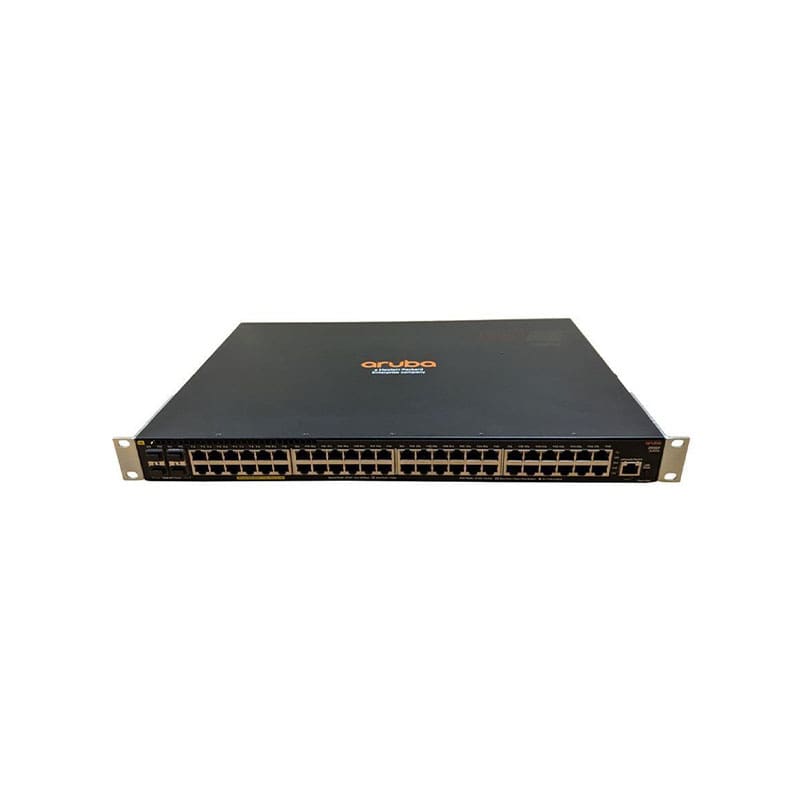

HPE Aruba Switch 48 Ports 2930F 48GB 4SFP Gigabit
General Information
Manufacturer: HPE
Model Number or SKU# JL260A
Product Type: Managed Switch
Technical Information of the HPE Switch
Enclosure Type: Rack-Mountable 1U
Ports: 48 X 10/100/1000 + 4 X Gigabit Sfp (Uplink)
Performance
Throughput: 77.4 Mpps
Switching Capacity: 104 Gbps
Latency (1 Gbps): 3.8 µs
Capacity: Jumbo Frame Size: 9220
Ipv4 Routing Table Entries: 10000
Ipv6 Routing Table Entries: 5000
Mac Address Table Size: 32k Entries
Processor/Memory
Processor: 1 X Arm Cortex-A9: 1.016 Ghz
Ram : 1 Gb – DDR3 SDRAM
Flash Memory: 4 Gb
Interfaces
48 X 1000base-T – Rj-45
4 X Gigabit Lan – Sfp
1 X Serial (Console)
Expansion Slots: 1 (Total) / 1 (Free) X Expansion Slot
Installed Modules Qty (Max) : 0 (Installed) / 4 (Max)
