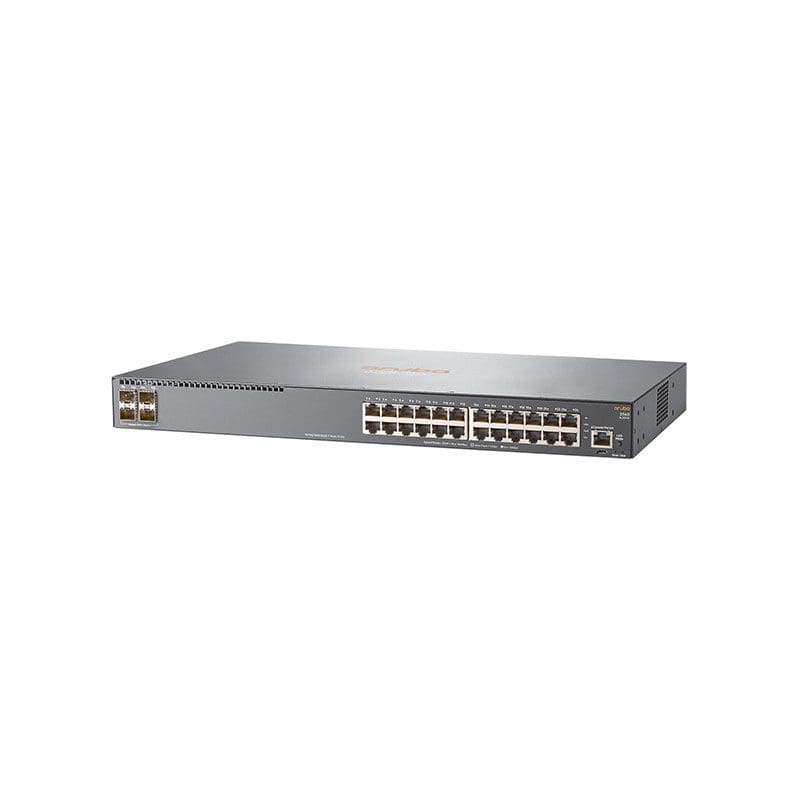

Refurbished JL259A Technical Specifications
HP Aruba 2930f 24G 4sfp Switch 24 Ports Managed – Rack-Mountable
GENERAL INFORMATION :
Device Type :HP Aruba Switch – 24 Ports – L3 – Managed – Stackable
Enclosure Type : Rack-Mountable – 1u Aruba 2930f
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 + 4 sfp Port
Performance : Throughput : 41.7 Mpps ¦ Switching Capacity : 56 Gbps ¦ Latency (1 Gbps) : 3.8 µs
Capacity : Jumbo Frame Size : 9220 ¦ Ipv4 Routing Table Entries : 10000 ¦ Ipv6 Routing Table Entries : 5000
Mac Address Table Size : 32k Entries
Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Bgp, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Cidr
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Ssh, Ssh-2, Cli, Xrmon
Encryption Algorithm : Md5, Ssl
Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+
Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Spanning Tree Protocol (Stp) Support, Multiple Spanning Tree Protocol (Mstp) Support, Access Control List (Acl) Support, Quality Of Service (Qos), Jumbo Frames Support, Dhcp Server, Stp Root Guard, Uni-Directional Link Detection (Udld), Lldp Support, Link Aggregation Control Protocol (Lacp), Management Information Base (Mib), Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (Gvrp), Multiple Vlan Registration Protocol (Mvrp), Neighbor Discovery Protocol (Ndp), Class Of Service (Cos), Type Of Service (Tos), Openflow Support, Cpu Protection, Internet Control Message Protocol (Icmp), Icmp Router Discovery Protocol (Irdp), Virtual Extensible Lan (Vxlan), Management Information Base (Mib) Ii
Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (Lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax
Processor : 1 X Arm Cortex-A9 : 1.016 Ghz
Ram : 1 Gb – Ddr3 Sdram
Flash Memory : 4 Gb
EXPANSION / CONNECTIVITY :
Interfaces : 24 X 1000base-T – Rj-45 ¦ 4 X Gigabit Lan – Sfp ¦ 1 X Serial (Console)
Expansion Slots : 1 (Total) / 1 (Free) X Expansion Slot
Installed Modules Qty (Max) : 0 (Installed) / 4 (Max)
POWER :
Power Device : Internal Power Supply
Installed Qty : 1
Voltage Required : Ac 120 V
Power Consumption Operational : 29.3 Watt
