JL258A Technical Specifications

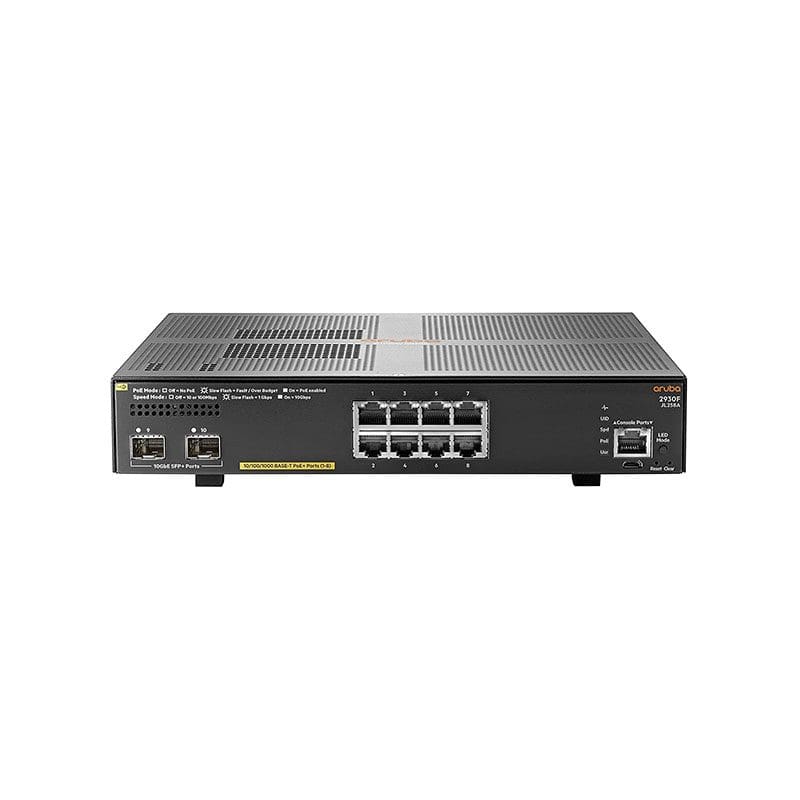

HP Aruba 2930F 8G PoE+ 2sfp+ Switch – 8 Ports – Managed – Rack-Mountable
GENERAL INFORMATION :
Manufacturer Part Number :JL258A
Device Type :HP Aruba – Switch – 8 Ports Network Switch – L3 – Managed – Stackable
Enclosure Type : Rack-Mountable 1u Aruba 2930F
Subtype : Gigabit Ethernet
Ports : 8 X 10/100/1000 (Poe+) + 2 X 1 Gigabit / 10 Gigabit Sfp+ (Uplink)
Power Over Ethernet (Poe) : Poe+
Performance : Throughput: 41.7 Mpps ¦ Switching Capacity: 56 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 GBPS): 1.6 µs
Capacity : Jumbo Frame Size: 9220 ¦ Ipv4 Routing Table Entries: 10000 ¦ Ipv6 Routing Table Entries: 5000
Mac Address Table Size : 32k Entries
Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Bgp, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Cidr
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Ssh, Ssh-2, Cli, Xrmon
Encryption Algorithm : Md5, Ssl
Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+
Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (Lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax
Processor : 1 X Arm Cortex-A9 : 1.016 Ghz
Ram : 1 Gb – Ddr3 Sdram
Flash Memory : 4 Gb
EXPANSION / CONNECTIVITY :
Interfaces : 8 X 1000base-T – Rj-45 – Poe+ ¦ 2 X Gigabit / 10gbit Lan – Sfp+ ¦ 1 X Serial (Console)
Expansion Slots : 1 (Total) / 1 (Free) X Expansion Slot
Installed Modules Qty (Max) : 0 (Installed) / 2 (Max)
