JH018A Technical Specifications

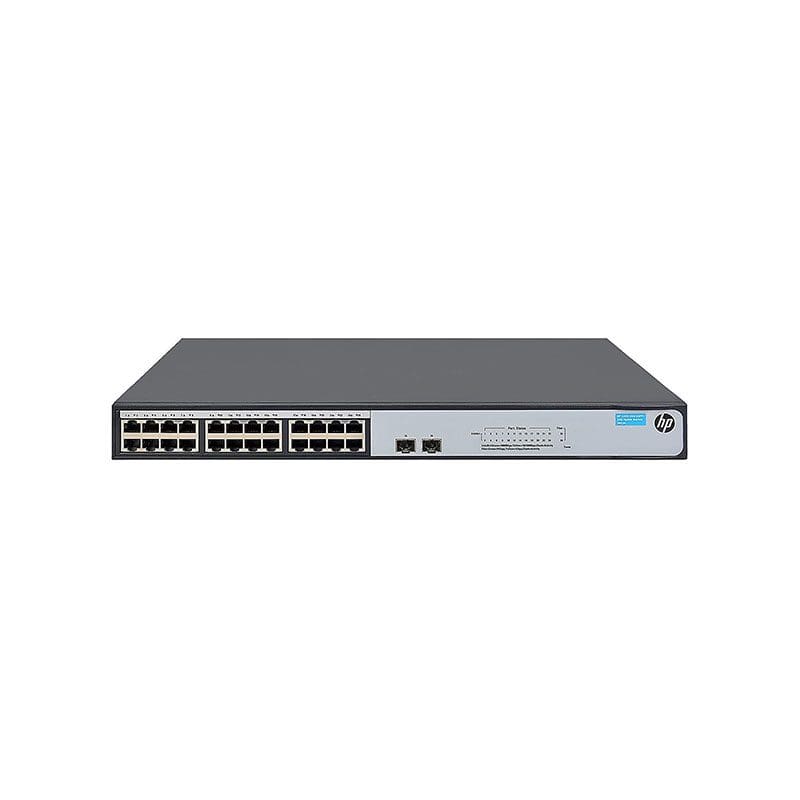

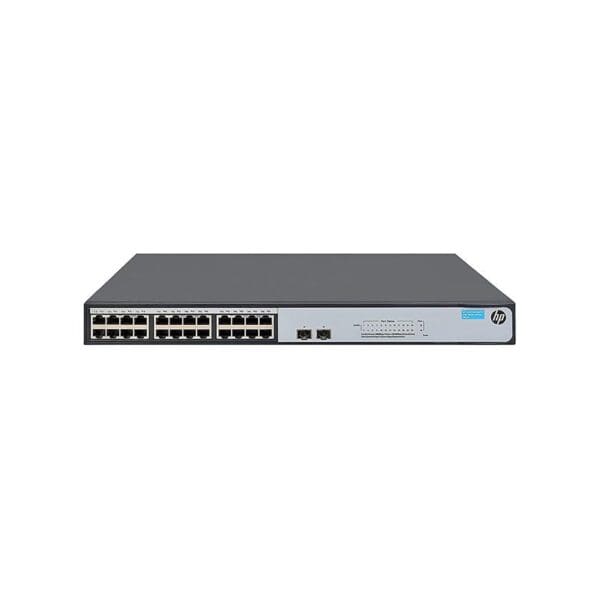

HP OfficeConnect 1420 24G 2SFP+ Switch
Manufacture PArt Number : JH018A
Manufacture : HP
Device Type Switch – 24 ports – unmanaged
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 2 x 1 Gigabit / 10 Gigabit SFP+
Performance Throughput (64-byte packet size): up to 65.5 Mpps ¦ Switching capacity: 88 Gbps
MAC Address Table Size 16384 entries
Jumbo Frame Support 9216 bytes
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
Flash Memory 8 MB
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 ¦ 2 x Gigabit / 10Gbit LAN SFP+
Miscellaneous
MTBF 109,4 years
Compliant Standards CISPR 24, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN55024, CISPR 22, CSA 22.2 No. 60950, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A
Dimensions & Weight
Width 17.3 in
Depth 9.4 in
Height 1.7 in
Weight 6.39 lbs
