JATP700-AC-COL Technical Specifications

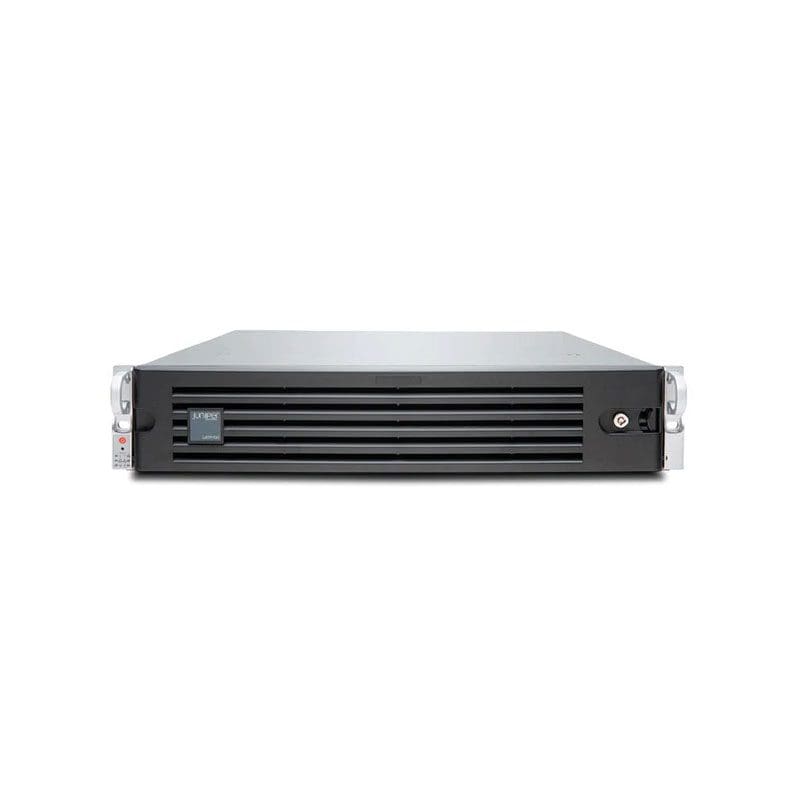

Juniper JATP700 2U 8x900GB Threat Prevention Appliance with AC Power Supply
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks Advanced Threat Prevention
Packaged Quantity :1
Processor
Installed Qty :2
RAM
Installed Size :128 GB
Storage Controller
RAID Level :RAID 6
Hard Drive
Type :HDD
Form Factor :2.5″
Form Factor (metric) :6.4 cm
Interface Type :Serial Attached SCSI
Installed Qty :8
Capacity :900 GB
Performance
Performance :Threat protection throughput: 4 Gbps
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Features :E-mail protection, Web threat protection, Anti-malware protection, Traffic monitoring, 1 fan
Interface Provided
Interfaces :1 x console – RJ-45, 2 x 10Gb Ethernet – SFP+, 4 x 1000Base-T – RJ-45
Power Device
Power Provided :920 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50 – 60 hertz
System Requirements
OS Required :Microsoft Windows 7, Apple MacOS X 10.10
Miscellaneous
Color Category :Black
Height (Rack Units) :2
Compliant Standards :ICES-003 Class A, IEC 60950-1, EN 61000-3-2, KN32, CSA 60950-1, EN 55022 Class A, EN 61000-3-3, UL 60950-1, KN22 Class A, CAN/CSA-C22.2 No. 60950-1, EN 55032/CISPR 32 Class A, AS/NZS CISPR32, EN 55022/CISPR 22 Class A, IEC60950-1:2005+A1:2009+A2:2013, VCCI Class A, KN35, CNS 13438 Class A, CISPR 24, EN55024, UL 60950-1 Second Edition, EN 60950-1, VCCI-CISPR 32:2016 Class A, FCC CFR47 Part 15 A, AS/NZS CISPR22 Class A, EN 300 386, RoHS, BSMI CNS 13438, EN 55024/CISPR 24 Class A, CISPR 22 Class A, IEC 60950-1:2005 + A1:2009 + A2:2013, AS/NZS CISPR 32
Dimensions & Weight
Width :17.2 inch
Depth :24.8 inch
Height :3.5 inch
Weight :41.89 lbs
Environmental Parameters
Min Operating Temperature :50 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :8 – 90% (non-condensing)
