JATP700-AC-ALL Technical Specifications

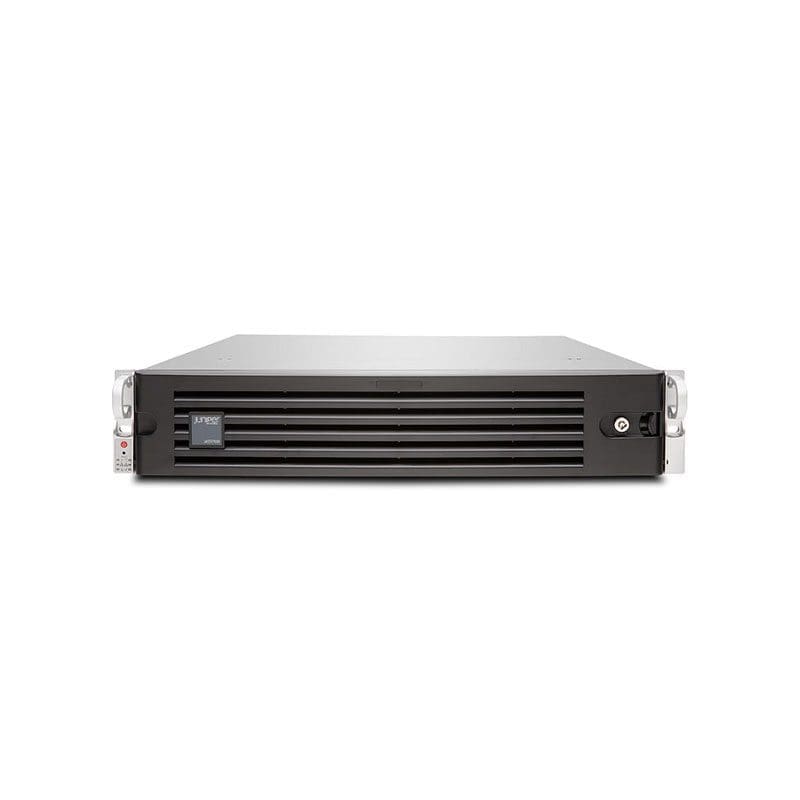

Juniper Networks JATP700 2×10 Cores 2U Advanced Threat Prevention Appliance
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :JATP700 (all-in-one)
Packaged Quantity :1
Processor
Installed Qty :2
RAM
Installed Size :128 GB
Storage Controller
RAID Level :RAID 6
Hard Drive
Type :HDD
Form Factor :2.5″
Form Factor (metric) :6.4 cm
Interface Type :Serial Attached SCSI
Installed Qty :8
Capacity :900 GB
Performance
Performance :Performance: 4 Gbps, Objects detonations: up to 130,000 objects/day, Logging performance: 1,500 events/second
Capacity
Capacity :Email MTA receiver: 2000000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, 10 Gigabit Ethernet
Interface Provided
Interfaces :2 x 10GBase-X – SFP+, 4 x 1000Base-T – RJ-45
Software
Type :All-in-one software
Power Device
Type :Internal power supply
Power Redundancy :Yes
Power Provided :920 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Color Category :Black
Height (Rack Units) :2
Compliant Standards :RoHS, CAN/CSA-C22.2 No. 60950-1, EN 61000-3-3, CNS 13438 Class A, EN 60950-1, EN 55022 Class A, BSMI, EN55024, AS/NZS CISPR22 Class A, CISPR 22 Class A, VCCI Class A, CNS 13438, FCC CFR47 Part 15 A, CISPR 24, KN22 Class A, UL 60950-1 Second Edition, ICES-003 Class A, EN 300 386, IEC 60950-1:2005/A2:2013, EN 61000-3-2
Dimensions & Weight
Width :17.2 inch
Depth :24.8 inch
Height :3.5 inch
Weight :41.89 lbs
Environmental Parameters
Min Operating Temperature :50 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :8 – 90% (non-condensing)
