J9782A Technical Specifications

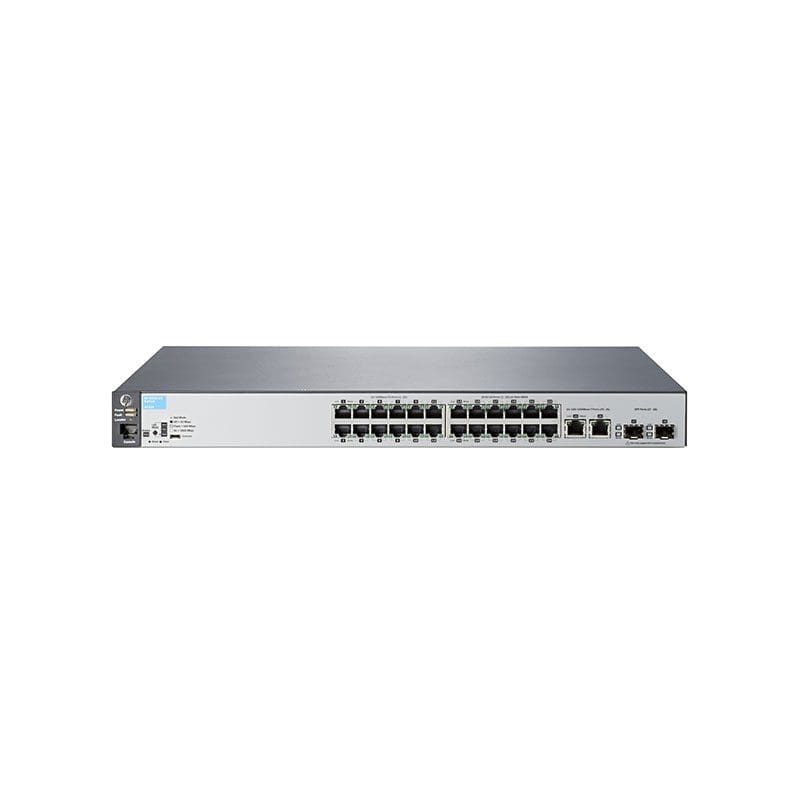

HP 2530-24 Switch Switch 24 Ports Managed
GENERAL INFORMATION :
Device Type : Switch – 24 Ports Network Switch – Managed
Enclosure Type : Desktop, Rack-Mountable, Wall-Mountable – 1u
Ports : 24 X 10/100 + 2 X Combo Gigabit Sfp + 2 X 10/100/1000BASE-TX
100BASE-T
Performance : Throughput : 9.5 Mpps Switching Capacity : 12.8 Gbps
Capacity : Mac Addresses : 16000
Mac Address Table Size : 16000 Entries
Jumbo Frame Support : 9220
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Tftp, Ssh-2, Cli
Features : Flow Control, Dhcp Support, Bootp Support, Arp Support, Trunking, Vlan Support, Auto-Uplink (Auto Mdi/Mdi-X), Port Mirroring, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Sntp Support, Sflow, Multiple Spanning Tree Protocol (Mstp) Support, Access Control List (Acl) Support, Quality Of Service (Qos), Stp Root Guard, Lldp Support, Class Of Service (Cos), Generic Attribute Registration Protocol (Garp)
Compliant Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.1d, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (Lacp), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (Lldp), IEEE 802.3az
Processor : 1 X Arm : 800 MHz
Ram : 256 Mb – Ddr3 Sdram
Flash Memory : 128 Mb
Ethernet Technology: Ethernet, Fast Ethernet, Gigabit Ethernet
EXPANSION / CONNECTIVITY :
Interfaces : 2 X 10base-T/100base-Tx/1000base-T – Rj-45 2 X Sfp (Mini-Gbic) Management : 1 X Console – Rj-45 24 X 10base-T/100base-Tx – Rj-45
