J9776A Technical Specifications

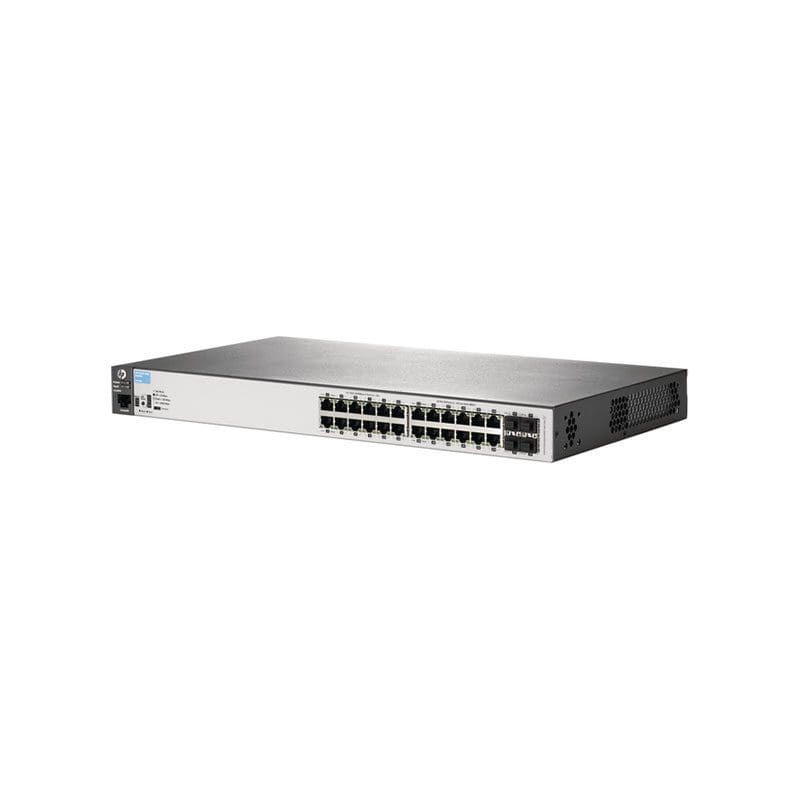

HP Procurve 2530 24G Managed Switch
GENERAL INFORMATION :
Device Type : Switch – 24 Ports Network Switch – Managed
Enclosure Type : Desktop, Rack-Mountable, Wall-Mountable – 1u
Processor : 1 X Arm : 800 Mhz
Ram : 128 Mb – Ddr3 Sdram
Flash Memory : 256 Mb
Ethernet Technology: Gigabit Ethernet
Performance :
Throughput : 41.6 Mpps
Switching Capacity : 56 Gbps
Networking :
Ports : 24 X 10/100/1000Base-T + 4 SFP+ Port
Mac Address Table Size : 16000 Entries
Jumbo Frame Support : 9220
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Tftp, Ssh-2, Cli
Encryption Algorithm : Ssl
Authentication Method : Radius, Tacacs+, Secure Shell V.2 (Ssh2)
Expansion / Connectivity :
Interfaces : 24 X 10base-T/100base-Tx/1000base-T – Rj-45
4 X Sfp+
Management : 1 X Console – Rj-45
Power :
Power Device : Power Supply
Voltage Required : Ac 120/230 V ( 50/60 Hz )
