J9773A#AC3 Technical Specifications

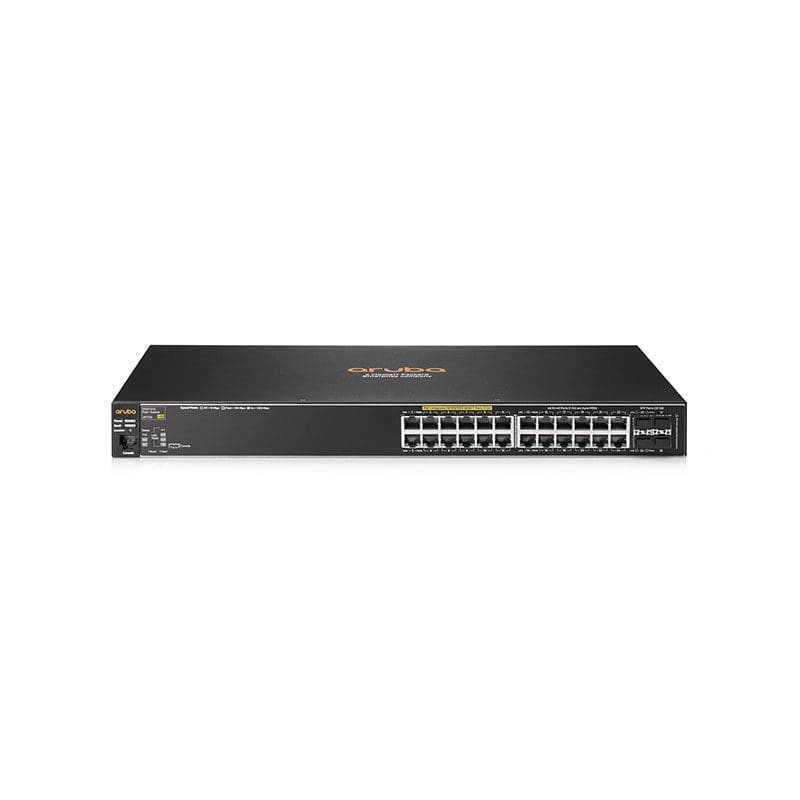

HPE Aruba 2530-24G-PoE+Switch 24 Ports Managed Rack Mountable
Header
Manufacturer Part Number :J9773A#AC3
Brand :Aruba
Product Line :HPE Aruba
Model :2530-24G-PoE+
Packaged Quantity :1
Processor
Installed Qty :1
Manufacturer :ARM
Clock Speed :800 megahertz
RAM
Technology :DDR3 SDRAM
Installed Size :256 megabyte
Flash Memory
Installed Size :128 megabyte, 128 megabyte
Performance
Performance :Throughput (64-byte packet size): 41.6 Mpps, Switching capacity: 56 Gbps
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Wall-mountable, Rack-mountable, Desktop
Ports Qty :24
MAC Address Table Size :16000 entries
Jumbo Frame Support :9220 bytes
Manageable :Yes
Remote Management Protocol :SNMP 3, CLI, RMON 1, RMON 2, RMON 9, HTTP, Telnet, RMON 3, SSH-2, SNMP 2c, SNMP 1, TFTP
Power Over Ethernet (PoE) :PoE+
PoE Budget :195 watt
Features :Access Control List (ACL) support, sFlow, SNTP support, ARP support, BOOTP support, Dual firmware images, Auto-uplink (auto MDI/MDI-X), Multiple Spanning Tree Protocol (MSTP) support, DHCP support, Multicast Suppression, LLDP support, Full duplex mode, VLAN support, Port mirroring, IPv6 support, Flow control, Quality of Service (QoS), Class of Service (CoS), STP Root Guard, Trunking, 1.5MB packet buffer, Generic Attribute Registration Protocol (GARP), Half duplex mode
Compliant Standards :IEEE 802.1w, IEEE 802.3x, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.3, IEEE 802.1s, IEEE 802.1D, IEEE 802.3az, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3at
Ports
Qty :24
Ports (2nd)
Qty :4
Type :Gigabit SFP
Interface Provided
Interfaces :1 x management (micro-USB) Type B, 4 x Gigabit LAN SFP, 24 x 1000Base-T PoE+, 1 x management RJ-45
Power Device
Type :Internal power supply
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
