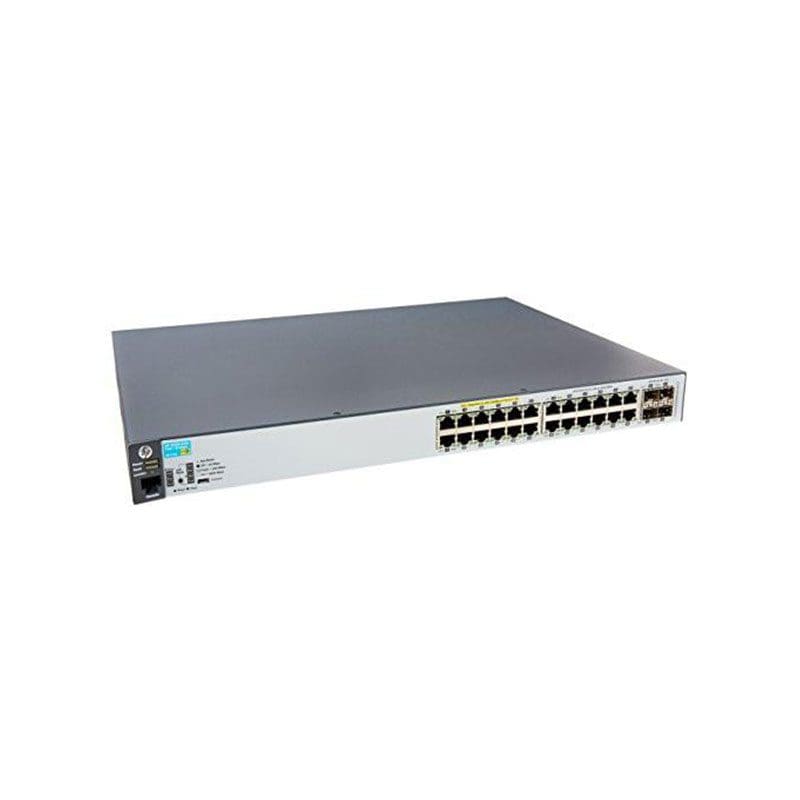

J9773A Technical Specifications
HP Procurve 2530 24G PoE Managed Switch
GENERAL INFORMATION :
Device Type : Switch – 24 Ports Network Switch – Managed
Enclosure Type : Desktop, Rack-Mountable, Wall-Mountable – 1u
Processor : 1 X Arm : 800 Mhz
Ram : 128 Mb – Ddr3 Sdram
Flash Memory : 256 Mb
Ethernet Technology: Gigabit Ethernet
Networking :
Ports : 24 X 10/100/1000Base-T + 4 X Gigabit Sfp
Power Over Ethernet (Poe) : Poe+
Performance throughput : 41.6 Mpps Switching Capacity : 56 Gbps
Mac Address Table Size : 16000 Entries
Jumbo Frame Support : 9220
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Tftp, Ssh-2, Cli
Encryption Algorithm : Ssl
Authentication Method : Radius, Tacacs+, Secure Shell V.2 (Ssh2)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (Lldp), Ieee 802.3at, Ieee 802.3az
Expansion / Connectivity :
Interfaces :
24 X 10base-T/100base-Tx/1000base-T – Rj-45 – Poe+
4 X Sfp+
Management : 1 X Console – Rj-45
