J9773A#ABA Technical Specifications

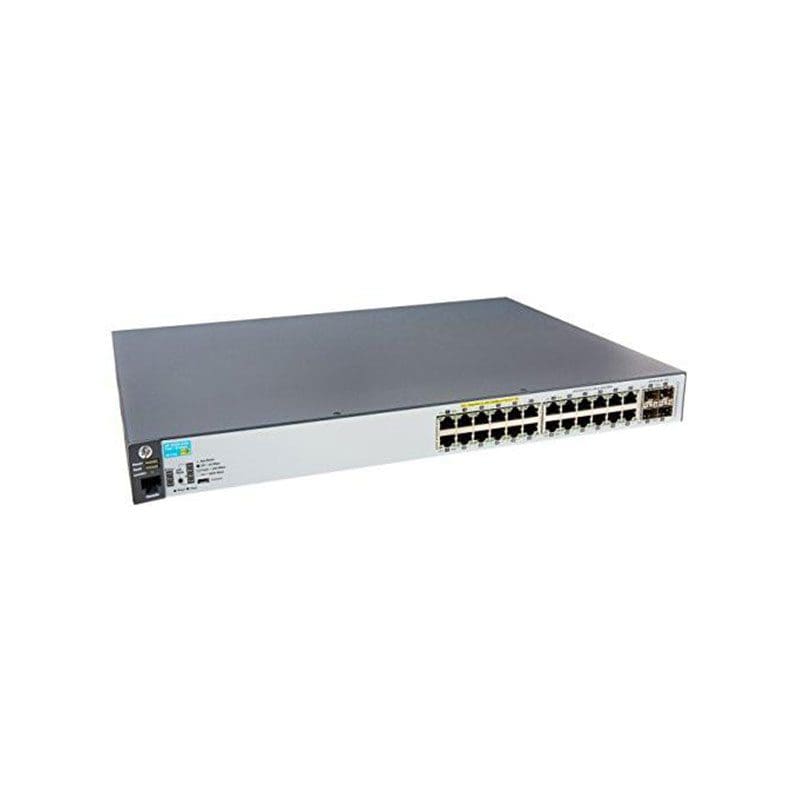

HPE Aruba 2530-24G-PoE+Switch 24 Ports Managed Rack Mountable
Header
Manufacturer :Aruba
Brand :Aruba
Product Line :HPE Aruba
Model :2530-24G-PoE+
Packaged Quantity :1
Processor
Installed Qty :1
Manufacturer :ARM
Clock Speed :800 megahertz
RAM
Technology :DDR3 SDRAM
Installed Size :256 megabyte
Flash Memory
Installed Size :128 megabyte, 128 megabyte
Performance
Performance :Throughput: 41.6 Mpps, Switching capacity: 56 Gbps
Capacity
Capacity :MAC addresses: 16000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Rack-mountable, Desktop, Wall-mountable
Ports Qty :24
MAC Address Table Size :16000 entries
Jumbo Frame Support :9220 bytes
Manageable :Yes
Remote Management Protocol :SNMP 1, RMON 2, Telnet, SNMP 3, RMON 1, CLI, SSH-2, RMON 9, SNMP 2c, RMON 3, HTTP, TFTP
Power Over Ethernet (PoE) :PoE+
PoE Budget :195 watt
Compliant Standards :IEEE 802.1s, IEEE 802.3at, IEEE 802.3u, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3, IEEE 802.1Q, IEEE 802.3af, IEEE 802.1D, IEEE 802.1w, IEEE 802.1p, IEEE 802.3az
Ports
Qty :24
Ports (2nd)
Qty :4
Type :Gigabit SFP
