J8768-69001 Technical Specifications

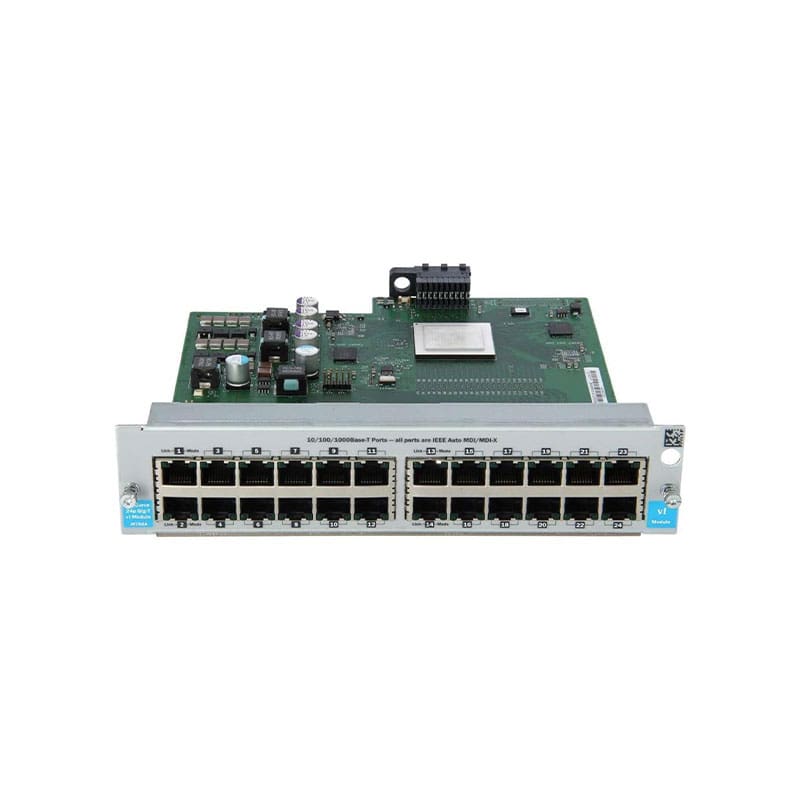

HPE Procurve Gig-T Module Provides 24-Ports
Manufacturer: HPE
Brand: HPE
Type: Networking
Module-Type: Expansion Module – 24 Ports
Form Factor: Plug-In Module
Networking
Connectivity Technology: Wired
Cabling Type: Ethernet 10Base-T, Ethernet 100Base-Tx, Ethernet 1000Base-T
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate: 1 GBPS
Features: Auto-Uplink (Auto Mdi/Mdi-X), Half Duplex Mode, Full Duplex Mode
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Dimension and Weight
Height: 4.75inch
Width: 12.87inch
Depth: 14.12inch
Weight: 2 Lbs
Expansions And Connectivity
Interfaces: 24 X Network – Ethernet 10Base-T/100Base-Tx/1000Base-T- RJ-45
Compatible Slots: 1 X Expansion Slot
