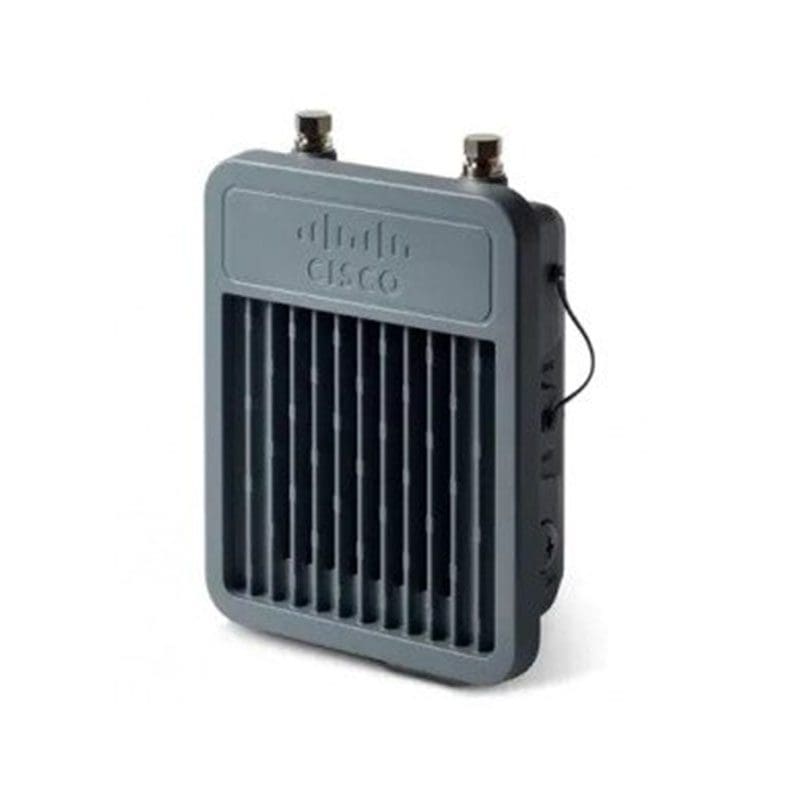

Refurbished IXM-LPWA-800-16-K9 Technical Specification
Cisco IXM Wireless Gateway
General
Device Type Gateway
Ruggedized Design Outdoor
Width 8.1 in
Depth 3.9 in
Height 11.1 in
Weight 7.94 lbs
Localization Middle East, Africa, Europe
Processor / Memory / Storage
Processors Installed 1.33 GHz
RAM 1 GB DDR4 SDRAM
Flash Memory 4 GB
Networking
Form Factor External
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet
Network / Transport Protocol IPSec, DNS
Status Indicators Power, alarm, ready
Features NAT support, static IP mode, DHCP client, Network Timing Protocol (NTP), Simple Certificate Enrollment Protocol (SCEP), Anti-Counterfeit Technology 2
Compliant Standards IEEE 802.1Q, IEEE 802.3at
Antenna
Antenna External detachable
Antenna Qty 1
Internet of Things (IoT)
Internet of Things (IoT) Compatible Yes
Communications Technology LoRaWAN
Expansion / Connectivity
Interfaces 2 x IrDA – N connector | 1 x GPS in – TNC | 1 x USB 2.0 – Type A | 1 x console – RJ-45 | 100Base-TX (PoE+) – RJ-45
Miscellaneous
Included Accessories Pole/wall mount kit, cable gland, ground lugs
Cables Included 1 x antenna cable – 15 ft
Compliant Standards ICES-003, EN55024, FCC Part 15.247, RSS-102, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, IP67, FCC Part 15 B Class A, EN 50385, UL 60950-22, EN 301 489-1, IEC 60529, RSS-247, EN 55032 Class A, CISPR 32, IEEE 802.3at, EN 300 220, EN 300 440-2, CAN/CSA-C22.2 No. 60950-1, ARIB STD-T108
Power
Power Over Ethernet (PoE) Supported PoE+
Software / System Requirements
OS Required Linux
