Refurbished ISR4451-X-AXV/K9 Technical Specifications

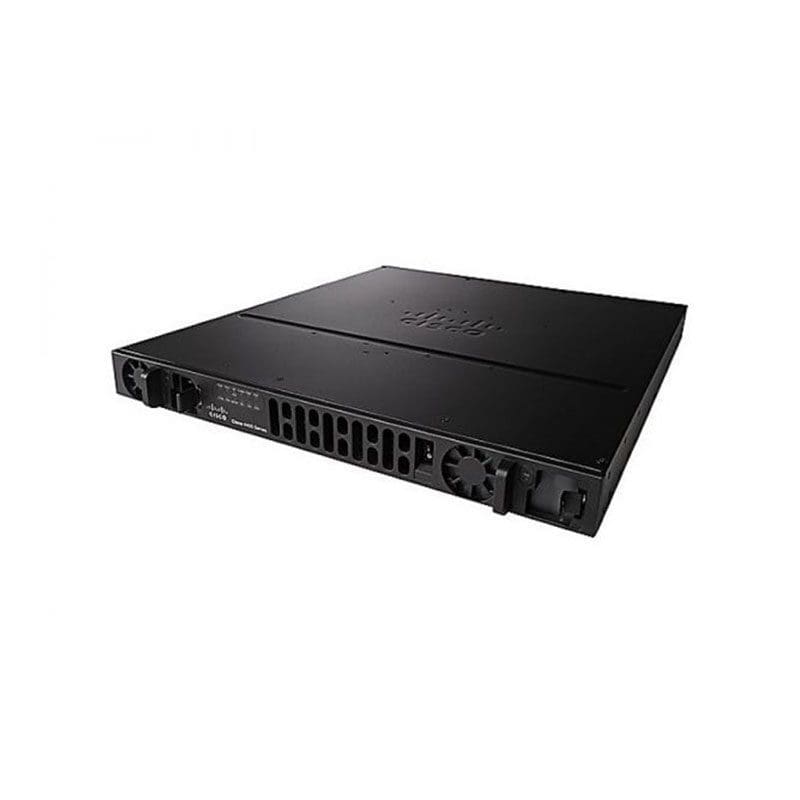

Cisco 4451-X Integrated Services Router – Application Experience With Voice Bundle – Router
Dimensions & Weight
Depth : 18.5 in
Height : 3.5 in
Weight : 28.88 lbs
Width : 17.2 in
Environmental Parameters
Humidity Range Operating : 5 – 85%
Max Operating Temperature : 104 °F
Min Operating Temperature : 32 °F
Expansion Slots
Type : CompactFlash
Type : DIMM 240-pin
Type : Enhanced Service Module (SM-X)
Type : ISC
Type : NIM
Flash Memory
Installed Size : 8 GB
Max Supported Size : 32 GB
Header
Brand : Cisco
Compatibility : PC
Kit : Application Experience with Voice Bundle
Manufacturer : CISCO DS HARDWARE DIRECT
Model : ISR4451
Product Line Integrated Services Router
Packaged Quantity : 1
Product Line : Cisco
Interface Provided
Connector Type : 4 pin USB Type A
Qty : 2
Type : USB 2.0
Connector Type : Mini-USB Type B
Type : Management
Connector Type : RJ-45
Interface : Ethernet 10Base-T/100Base-TX/1000Base-T
Qty : 4
Type : WAN / LAN
Connector Type : SFP (mini-GBIC)
Interface : Auxiliary
Interface : Console
Qty : 1
Type : Serial
Miscellaneous
Color Category : Black
Compliant Standards : AS/NZS 3548 Class A, AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438, EMI, EN 60950-1, EN 61000, EN300-386, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, KN22, KN24, UL 60950-1, VCCI V-3
Height (Rack Units) : 2
Included Accessories : 64-channel voice DSP module
Rack Mounting Kit : Included
Modem
Type : None
Networking
Compliant Standards : ANSI T1.101, IEEE 802.1ag, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ah, ITU-T G.823, ITU-T G.824
Connectivity Technology : Wired
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Access Control List (ACL) support, Bidirectional Forwarding Detection (BFD), Class-Based Weighted Fair Queuing (CBWFQ), Dynamic Multipoint VPN (DMVPN), Firewall protection, IPFIX, IPSec Virtual Private Network (VPN), IPv6 support, MPLS support, NetFlow, Quality of Service (QoS), RADIUS support, Syslog support, VLAN support, VPN support, Wall mountable, Weighted Random Early Detection (WRED)
Form Factor : Rack-mountable
Key Features : Firewall, USB port, VPN support
Modular : Modular
Network Transport Protocol : DHCP, IPSec, L2TPv3, PPPoE
Remote Management Protocol : RMON, SNMP
Routing Protocol : BGP, Bidirectional Forwarding Detection (BFD), DVMRP, EIGRP, GRE, IGMPv3, IPv4-to-IPv6 Multicast, IS-IS, MPLS, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, Static IPv4 routing, Static IPv6 routing
Type : Router
WAN Ports Qty : 4
OS Provided
Type : Cisco IOS Application Experience License
Performance
Type : Aggregate throughput
Value : 1 Gbps
Power Device
Frequency Required : 50/60 Hz
Hot-Plug : Hot-plug
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : AC 120/230 V
Power Provided : 450 Watt
Power Redundancy : Yes
Type : Internal power supply
RAM
Installed Size : 4 GB
Max Supported Size : 16 GB
Technology : DDR3 SDRAM
Slot Provided
Free Qty : 0
Total Qty : 1
Free Qty : 2
Total Qty : 2
Free Qty : 3
Total Qty : 3
Software
Type : Cisco IOS IP Base, Cisco IOS Security, Cisco IOS Unified Communications, Cisco Unified Border Element Enterprise Edition (25 sessions)
