Refurbished ISR4431-AXV/K9 Technical Specification

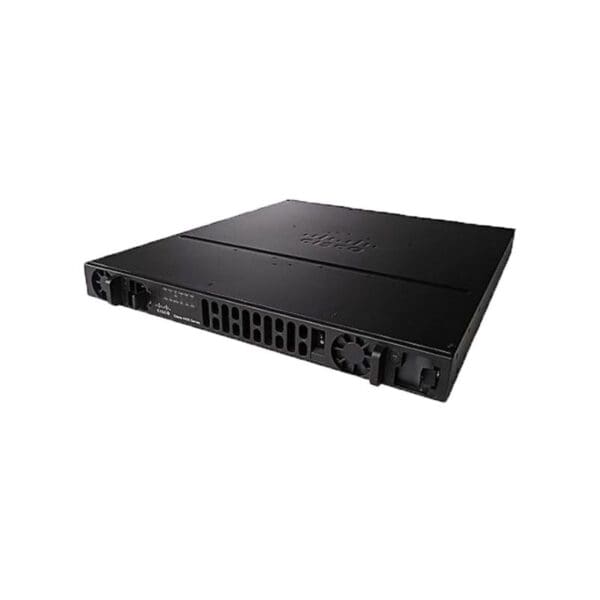

Cisco Integrated Services Router
General
Device Type Router
Enclosure Type Rack-mountable – modular – 1U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Performance Aggregate throughput: 500 Mbps
Network / Transport Protocol IPSec, PPPoE, DHCP, L2TPv3
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast
Remote Management Protocol SNMP, RMON
Features Firewall protection, VPN support, MPLS support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, IPSec Virtual Private Network (VPN), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), RADIUS support, Bidirectional Forwarding Detection (BFD), NetFlow, IPFIX
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1
RAM 4 GB (installed) / 16 GB (max) – DDR3 SDRAM
Flash Memory 8 GB (installed) / 32 GB (max)
Expansion / Connectivity
Interfaces WAN / LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 | Serial: 1 x console – RJ-45 | Management: 1 x console – mini-USB Type B | Serial: 1 x auxiliary – RJ-45 | USB 2.0: 2 x 4 pin USB Type A | 4 x SFP (mini-GBIC) | Management: 1 x RJ-45
Expansion Slots 3 (total) / 3 (free) x NIM | 1 (total) / 0 (free) x ISC | 3 (total) / 0 (free) x DIMM 240-pin | 1 (total) / 0 (free) x eMMC
Power
Power Device Internal power supply – hot-plug
Power Redundancy Optional
Installed Qty 1 (installed) / 2 (max)
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Included Accessories 64-channel voice DSP module
Rack Mounting Kit Included
Software / System Requirements
OS Provided Cisco IOS Application Experience License
Software Included Cisco IOS IP Base, Cisco IOS Unified Communications, Cisco Unified Border Element Enterprise Edition (25 sessions)
Dimensions & Weight
Width 17.2 in
Depth 20 in
Height 1.7 in
Weight 18.52 lbs
