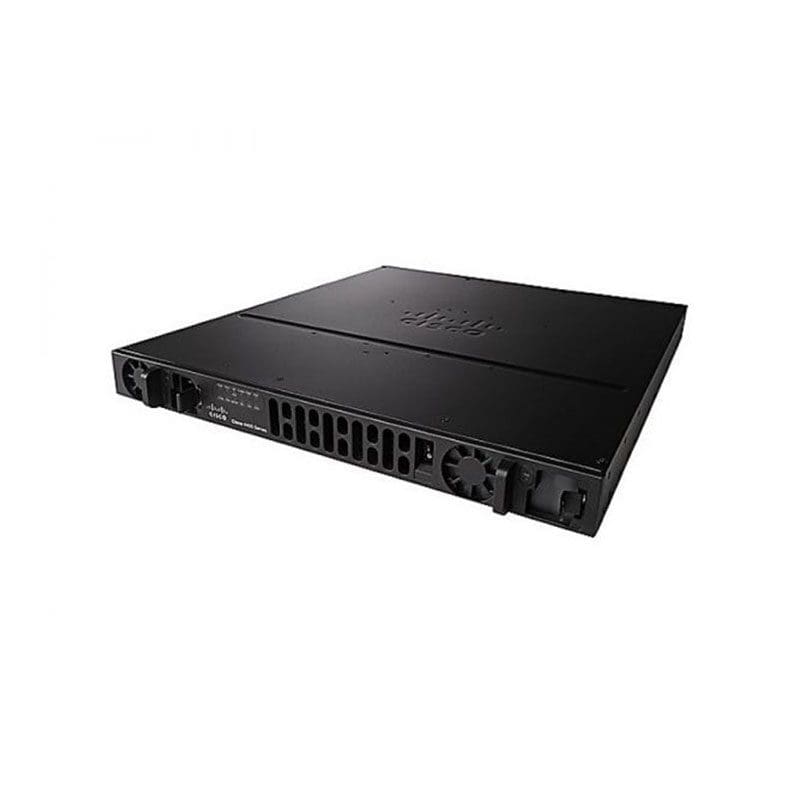

ISR4431-AXV/K9 Technical Specifications
Cisco ISR 4431 AXV Bundle.PVDM4-64 w/APP.SEC.UC lic.CUBE-25
Product Number: ISR4431-AXV/K9
Product Line Cisco ISR
Product Model ISR4431
Aggregate Throughput: 500Mbps to 1Gbps
Total onboard WAN or LAN 10/100/1000 ports: 4
RJ-45-based ports: 4
SFP-based ports: 4
Enhanced service-module slots: 0
Doublewide service-module slots: 0
NIM slots: 3
OIR (all I/O modules): Yes
Onboard ISC slot: 1
Default memory DDR3 ECC DRAM (data plane): 2 GB
Default flash memory: 8 GB
Maximum flash memory: 32 GB
External USB 2.0 slots (type A): 2
USB console port -type B mini (up to 115.2 kbps): 1
Serial console port – RJ45 (up to 115.2 kbps): 1
Serial auxiliary port – RJ45 (up to 115.2 kbps): 1
AC input frequency: 47 to 63 Hz
Typical power (no modules) (watts): 65
