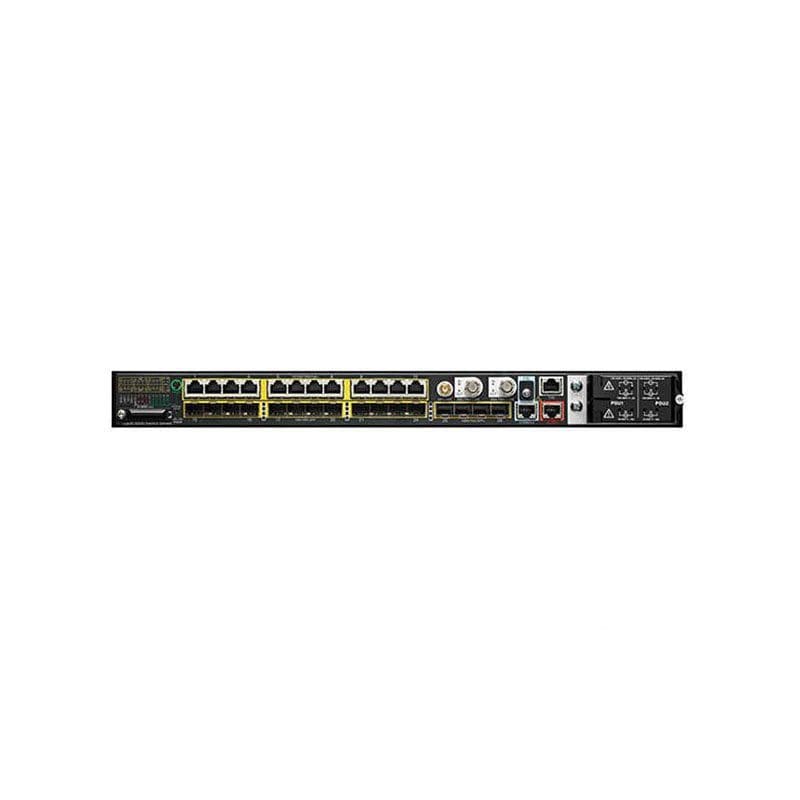

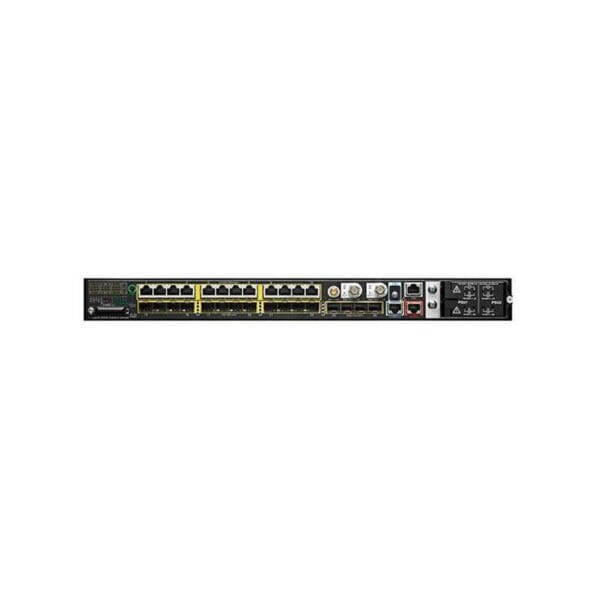

Refurbished IE-5000-16S12P Technical Specification
Cisco Industrial Ethernet 5000 Series
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Industrial Ethernet
Model :5000 Series
Packaged Quantity :1
Chassis
Built-in Devices :SD card reader
RAM
Installed Size :1 GB
Flash Memory
Installed Size :256 megabyte, 256 megabyte
Capacity
Capacity :IGMP groups: 1000, NAT entries: 128, Virtual interfaces (VLANs): 1005
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :28
Routing Protocol :BGP-4, Bidirectional Forwarding Detection (BFD), EIGRP, EIGRP for IPv6, HSRP, IGMP, IGMPv2, IGMPv3, IS-IS, OSPF, OSPF for IPv6, PIM-DM, PIM-SM, Policy-based routing (PBR), RIP-2, RIPng, Static IPv4 routing
MAC Address Table Size :16K entries
Manageable :Yes
Remote Management Protocol :CLI, HTTP, RMON, SCP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet, TFTP
Power Over Ethernet (PoE) :PoE+
Features :802.1x authentication, Bidirectional, Bidirectional Forwarding Detection (BFD), BOOTP support, Bridge protocol data unit (BPDU), Broadcast Storm Control, Class of Service (CoS), DHCP server, DHCP snooping, DiffServ support, Digital Optical Monitoring (DOM) support, Dynamic ARP Inspection (DAI), Flex Link support, Full duplex mode, Hot Standby Router Protocol (HSRP) support, IGMP filtering, IGMP snooping, Internet Control Message Protocol (ICMP), IP source guard, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, MAC address filtering, Management Information Base (MIB), Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, NAT support, Parallel Redundancy Protocol (PRP), Port Security, Precision Time Protocol (PTP), PROFINET v2, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Resilient Ethernet Protocol (REP), Spanning Tree Protocol (STP) support, Syslog support, Unicast Storm Control, Uni-Directional Link Detection (UDLD), Virtual Route Forwarding-Lite (VRF-Lite), VLAN Trunking Protocol (VTP)
Compliant Standards :IEEE 1588v2, IEEE 1613, IEEE 802.1ab (LLDP), IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports
Qty :16
Type :Gigabit SFP
Ports (2nd)
Qty :12
Type :10/100/1000 (PoE+)
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SD Memory Card
Interface Provided
Interfaces :1 x antenna input, 1 x console RJ-45, 1 x mini-USB Type B, 12 x 1000Base-T RJ-45 PoE+, 12 x 1000Base-X SFP, 4 x SFP uplink
Software
Type :Cisco IOS LAN Base
Power Device
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Power Consumption Operational :90 watt
Miscellaneous
Color Category :Black
Included Accessories :1 GB SD card
TAA Compliant :Yes
Height (Rack Units) :1
Authentication Method :RADIUS, Secure Shell (SSH), TACACS+
MTBF :390,190 Hours
Compliant Standards :AS/NZS CISPR22:2004 Class A, CB, China RoHS, CISPR 11 class A, CISPR 22 Class A, CISPR 24, CNS13438:2006 Class B, EN 50121-3-2, EN 50121-4, EN 50155, EN 55022 Class A, EN 60529, EN 60950-1, EN 61000-4-11, EN 61000-4-18, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61131-2, EN 61326, EN 61373, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-3, IEC 60068-2-30, IEC 60068-2-6, IEC 60068-2-64, IEC 60950-1, IEC 61850-3, IP30, ISO 9223, KN22, KN24, NOM-019-SCFI-1998, RoHS, UL 508, UL 60950-1, VCCI Class A
Dimensions & Weight
Width :17.5 inch
Depth :14 inch
Height :1.8 inch
Weight :13.69 lbs
