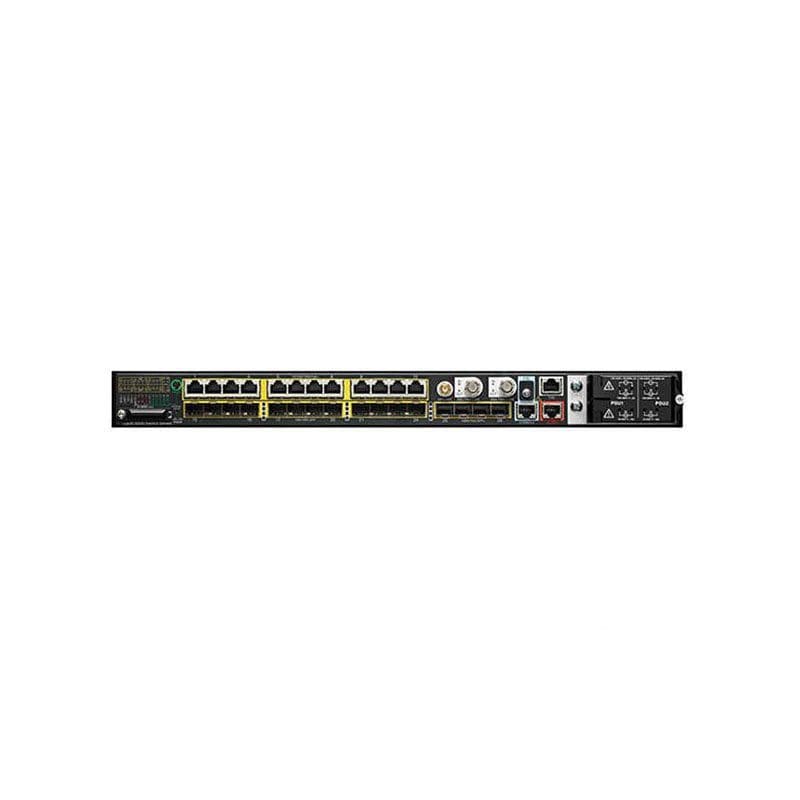

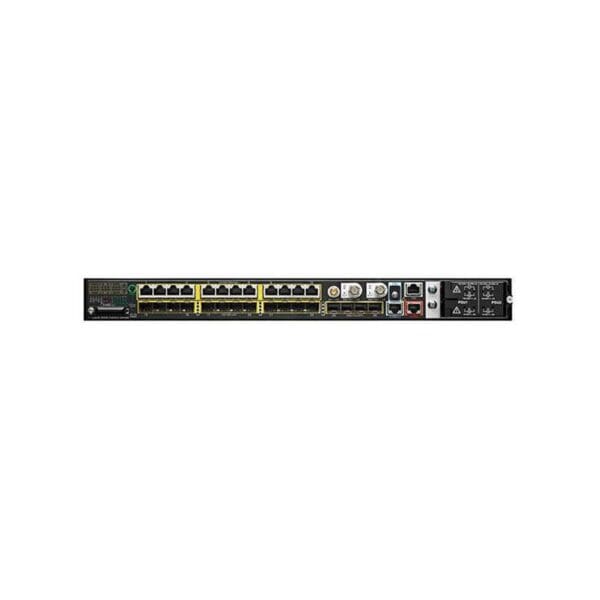

Refurbished IE-4010-16S12P Technical Specification
Cisco Industrial Ethernet 4010 Series
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Industrial Ethernet
Model :4010 Series
Packaged Quantity :1
RAM
Installed Size :1 GB
Flash Memory
Installed Size :128 megabyte, 128 megabyte
Performance
Performance :Forwarding bandwidth: 28 Gbps, Switching bandwidth: 56 Gbps
Capacity
Capacity :IGMP groups: 1000, NAT translations: 128, Virtual interfaces (VLANs): 1000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :DIN rail mountable
Ports Qty :28
Routing Protocol :IGMP, IGMPv2, IGMPv3, Static IPv4 routing
MAC Address Table Size :16K entries
Manageable :Yes
Remote Management Protocol :CLI, HTTP, RMON, RMON 2, SCP, SNMP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
Features :802.1x authentication, Bidirectional Forwarding Detection (BFD), BOOTP support, Bridge protocol data unit (BPDU), CIP Sync (IEEE 1588), Class of Service (CoS), DHCP server, DHCP snooping, DiffServ support, Dynamic ARP Inspection (DAI), Dynamic ARP protection, EtherNet/IP CIP Messaging, Flex Link support, IGMP filtering, IGMP snooping, IP source guard, IPv6 support, LLDP support, MAC Address Notification, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, NAT support, Parallel Redundancy Protocol (PRP), Precision Time Protocol (PTP), PROFINET v2, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Resilient Ethernet Protocol (REP), SmartPort technology, Spanning Tree Protocol (STP) support, Storm Control, Syslog support, Tunneling, Uni-Directional Link Detection (UDLD), VLAN support
Compliant Standards :IEEE 1588v2, IEEE 1613, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1ag, IEEE 802.1ah, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports
Qty :12
Type :10/100/1000 (PoE+)
Ports (2nd)
Qty :4
Type :10/100/1000/SFP (uplink)
Ports (3rd)
Qty :12
Type :10/100/1000/SFP
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SD Memory Card
Interface Provided
Interfaces :1 x console RJ-45, 1 x mini-USB Type B, 12 x 1000Base-T RJ-45, 12 x 1000Base-TX SFP, 4 x SFP uplink
Software
Type :Cisco IOS LAN Base
Miscellaneous
Color Category :Black
Included Accessories :1 GB SD card
TAA Compliant :Yes
Height (Rack Units) :1
Encryption Algorithm :FIPS 140-2
Authentication Method :RADIUS, TACACS
MTBF :415,160 Hours
Compliant Standards :BSMI CNS 13438 Class A, CB, China RoHS, CISPR 11 class A, CISPR 22 Class A, CISPR 24, CSA 22.2 No. 142, EN 50121-3-2, EN 50121-4, EN 50155, EN 55022 Class A, EN 61000-4-11, EN 61000-4-18, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61131-2, EN 61326, EN 61373, EN55024, FIPS 140-2, ICES-003 Class A, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-3, IEC 60068-2-30, IEC 60068-2-52, IEC 60068-2-6, IEC 60068-2-60, IEC 60068-2-64, IEC 60529 IP30, IEC 61163, IEC 61850-3, IEC/UL/CSA/EN 60950-1, ISO 9223, KN22, NOM-019-SCFI-1998, RoHS, UL 508, VCCI Class A
Dimensions & Weight
Width :17.5 inch
Depth :14 inch
Height :1.8 inch
Weight :12.74 lbs
