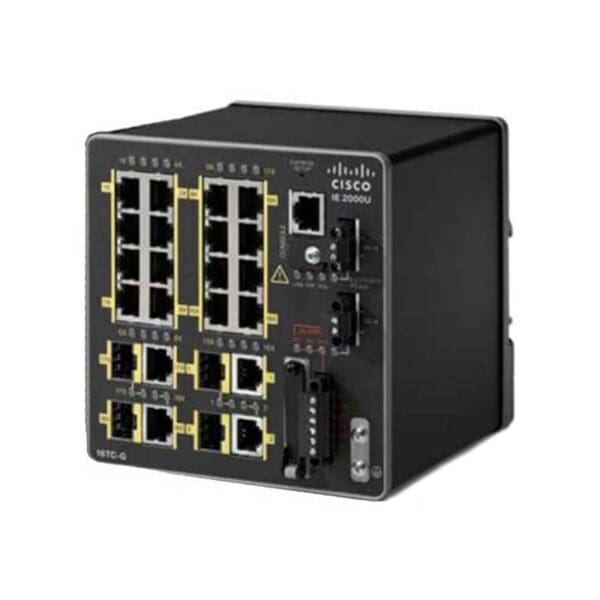

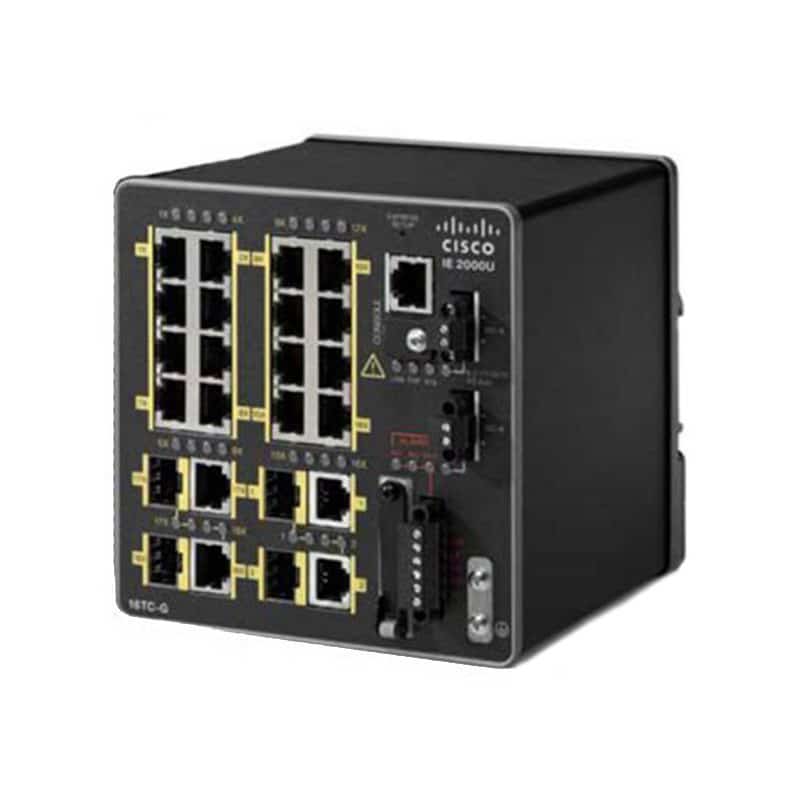

Refurbished IE-2000U-16TC-GP Technical Specification
Cisco Industrial Ethernet 2000U Series
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Industrial Ethernet
Model :2000U Series
Packaged Quantity :1
RAM
Installed Size :256 megabyte
Flash Memory
Installed Size :64 megabyte, 64 megabyte
Performance
Performance :Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity
Capacity :IGMP groups: 255, Virtual interfaces (VLANs): 255
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Fast Ethernet
Form Factor :DIN rail mountable
Ports Qty :16
Routing Protocol :IGMP
MAC Address Table Size :8K entries
Manageable :Yes
Remote Management Protocol :CLI, RMON, RMON 2, SNMP 1, SNMP 2, SNMP 3, SSH
Power Over Ethernet (PoE) :PoE+
Features :2MB packet buffer, 802.1x authentication, Access Control List (ACL) support, ARP support, Digital Optical Monitoring (DOM) support, Dynamic ARP Inspection (DAI), FTP client, Full duplex mode, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MLD snooping, Per-VLAN Rapid Spanning Tree (PVRST), Port Security, Precision Time Protocol (PTP), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), SNMP support, Spanning Tree Protocol (STP) support, Syslog support, Uni-Directional Link Detection (UDLD)
Compliant Standards :IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports
Qty :16
Type :10/100
Ports (2nd)
Qty :2
Type :Combo Gigabit SFP
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SD Memory Card
Interface Provided
Interfaces :1 x console RJ-45, 1 x mini-USB, 16 x 100Base-TX RJ-45, 2 x 1000Base-T RJ-45, 2 x 1000Base-X SFP uplink
Software
Type :Cisco IOS LAN Base
Power Device
Power Consumption Operational :20 watt
