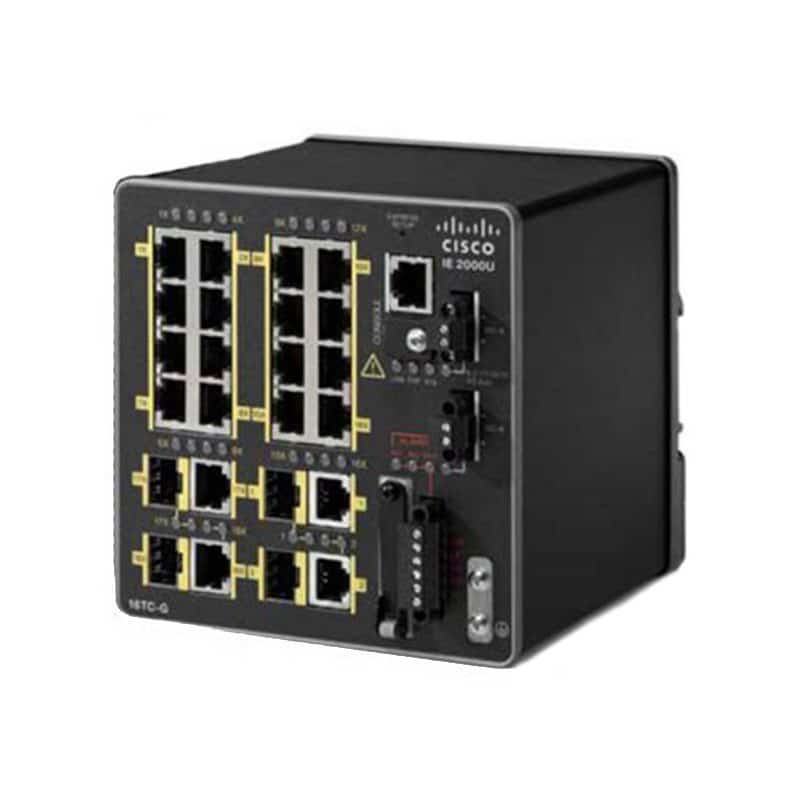

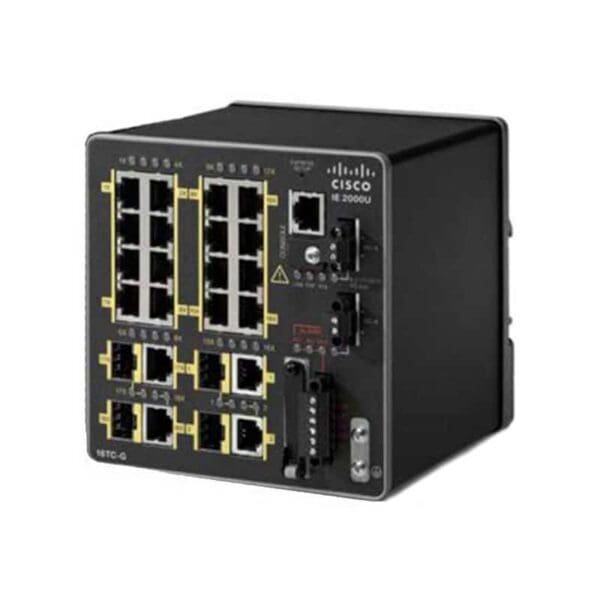

Refurbished IE-2000U-16TC-G-X Technical Specification
Cisco Industrial Ethernet 2000U Series
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Industrial Ethernet
Model :2000U Series
Packaged Quantity :1
RAM
Installed Size :256 megabyte
Flash Memory
Installed Size :64 megabyte, 64 megabyte
Performance
Performance :Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity
Capacity :IGMP groups: 255, Virtual interfaces (VLANs): 255
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Fast Ethernet
Form Factor :DIN rail mountable
Ports Qty :20
MAC Address Table Size :8K entries
Manageable :Yes
Remote Management Protocol :CLI, HTTP, RMON, RMON 2, SNMP 1, SNMP 2, SNMP 3, SSH
Features :Access Control List (ACL) support, Class of Service (CoS), Conformal coated, DHCP snooping, Digital Optical Monitoring (DOM) support, Dynamic ARP Inspection (DAI), FTP client, Full duplex capability, MLD snooping, Port Aggregation Protocol (PAgP) support, Port Security, Precision Time Protocol (PTP), Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Rugged, Spanning Tree Protocol (STP) support, Storm Control, Strict Priority Queuing (SPQ), Syslog support, Time Domain Reflectometry (TDR), Uni-Directional Link Detection (UDLD), VLAN support
Compliant Standards :IEEE 1588v2, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports
Qty :16
Type :10/100
Ports (2nd)
Qty :2
Type :Combo Gigabit SFP
Ports (3rd)
Qty :2
Type :Combo SFP
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SD Memory Card
Interface Provided
Interfaces :1 x console RJ-45, 1 x mini-USB Type B, 18 x 100Base-TX RJ-45, 2 x 1000Base-T RJ-45, 2 x 1000Base-X SFP, 2 x SFP
Software
Type :Cisco IOS LAN Base
Miscellaneous
Color Category :Black
Encryption Algorithm :SSL
Authentication Method :RADIUS, TACACS+
Compliant Standards :BSMI CNS 13438 Class A, CB, CISPR 22 Class A, CISPR 24, CSA 22.2 No. 142, EN 300 386, EN 300386, EN 55022 Class A, EN50204, EN55024, FCC Part 15 A, ICES-003 Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61850-3, IEC 62439-3, IEC/UL/CSA/EN 60950-1, KN22 Class A, KN24, UL 508, VCCI Class A
Dimensions & Weight
Width :5.1 inch
Depth :5 inch
Height :5.3 inch
Weight :4.34 lbs
