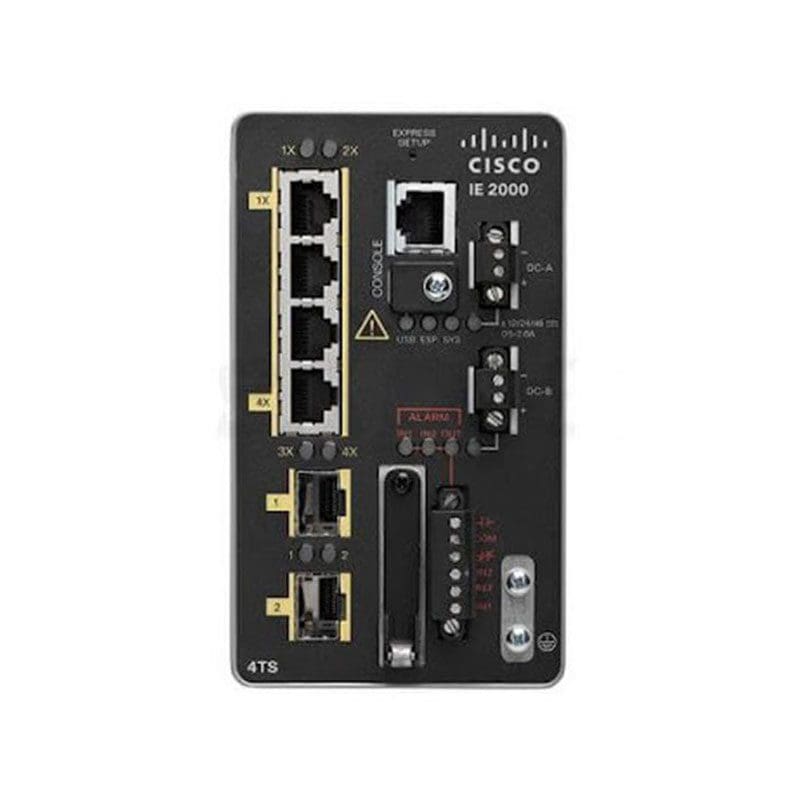

Refurbished IE-2000-4TS-G-L Technical Specification
Cisco Industrial Ethernet 2000 Series
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Industrial Ethernet
Model :2000 Series
Packaged Quantity :1
RAM
Installed Size :256 megabyte
Flash Memory
Installed Size :64 megabyte, 64 megabyte
Performance
Performance :Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity
Capacity :Virtual interfaces (VLANs): 255
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :DIN rail mountable
Ports Qty :6
Routing Protocol :IGMP, Static IPv4 routing
MAC Address Table Size :8K entries
Manageable :Yes
Remote Management Protocol :HTTPS, SNMP 3, SSH
Features :Broadcast Storm Control, DHCP support, Multicast Storm Control, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Spanning Tree Protocol (STP) support, Unicast Storm Control
Compliant Standards :IEEE 802.1x
Ports
Qty :4
Type :10/100
Ports (2nd)
Qty :2
Type :Gigabit SFP
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SD Memory Card
Interface Provided
Interfaces :2 x SFP (mini-GBIC), 4 x 100Base-TX RJ-45
Software
Type :Cisco IOS LAN Lite
Miscellaneous
Rack Mounting Kit :Optional
Authentication Method :RADIUS, Secure Shell (SSH), TACACS+
MTBF :374,052 Hours
Compliant Standards :CISPR 11, CISPR 22 Class A, CISPR 24, CSA 22.2 No. 142, C-Tick, EN 60950-1, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-6-1, EN 61000-6-4, EN 61131-2, EN 61326-1, EN55022 Class A, FCC CFR47 Part 15, FCC Part 15 A, ICES-003 Class A, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-6, IEC 60529 IP30, IEC 60950-1, IEC 61000-4-11, KCC, RoHS, UL 508, UL 60950-1, VCCI Class A ITE
Dimensions & Weight
Width :2.9 inch
Depth :4.5 inch
Height :5 inch
Weight :2.45 lbs
