IE-1000-6T2T-LM Technical Specifications

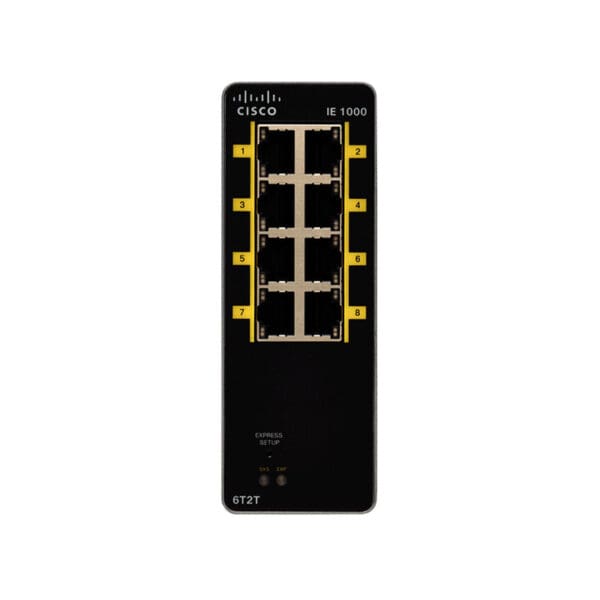

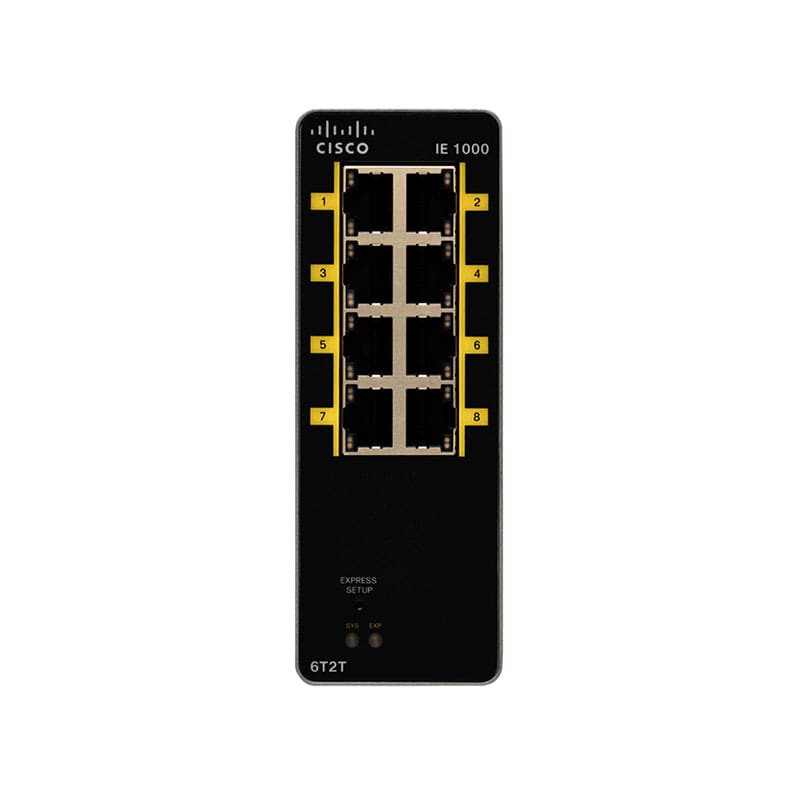

Cisco Industrial Ethernet 1000 Series Switch 8 ports Managed
Brand: Cisco
Product Line: Cisco Industrial Ethernet
Model: 1000 Series
Manufacturer: CISCO DS HARDWARE DIRECT
Memory
Flash Memory Installed: 160 megabyte
RAM Installed: 128 megabyte
Network & Communication
Form Factor (Hubs & Switches): DIN rail mountable
Manageable: Yes
Ports: 8
Product Type: Switch
Remote Management: HTTP, RMON, SNMP, SNMP 2, SNMP 3, SSH
Routing Protocol: IGMP, IGMPv2
Subcategory: Network hubs and switches
Switching Type: Fast Ethernet
Connectivity
Interface Provided: 8 x 100Base-TX RJ-45
Port Quantity: 2
Port Type: 10/100 (uplink)
Ports Type (2nd): 10/100 (downlink)
Power
Power Consumption Operational: 5.3 watt
Technical Information
Humidity Range Storage: 5 – 95% (non-condensing)
Max Operating Temperature: 158 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Min Operating Temperature: -4 degree Fahrenheit
